Fiberdyne Labs, Inc. Connector Panels

Introduction:
    These loaded connector panels are used in Fiberdyne Distribution Centers and Termination boxes. Each connector panel assembly includes bulkhead adapters and mounting hardware. They fit in the standard "LGX" slot. New York



Specifications:
    Each Panel is 5.06 x 1.125 inches (12.85cm x 2.86cm).
    The spacing for the locking pins is 4.62 inches (11.73cm).

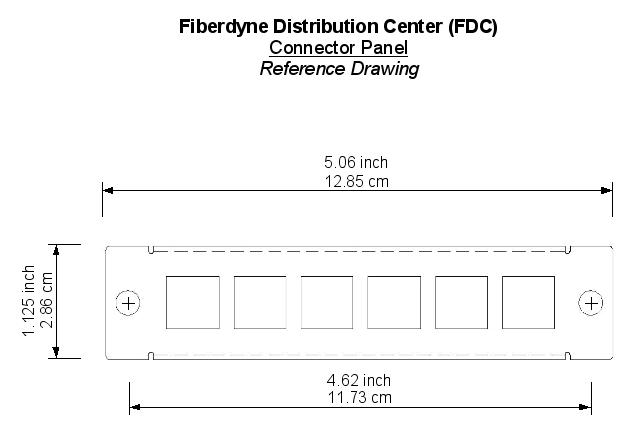

FDC Panel Reference Drawing Technical Data Sheet



PDF version of web page Connector Panels Technical Data Sheet



6 Pack Panels



FPA6SCU
    6 Position SC Panel, Pre-Loaded with 6 Simplex SC/UPC SM Adapters
6 Position SC Panel,
Pre-Loaded with 6 Simplex SC/UPC SM Adapters
Call to Order

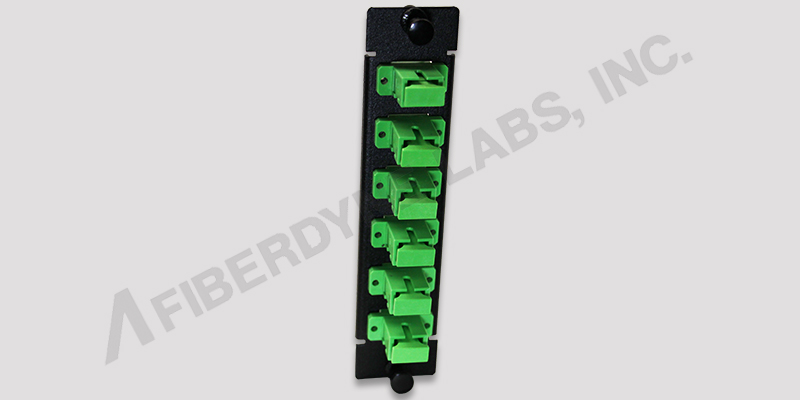

FPA6SCA     6 Position SC Panel, Pre-Loaded with 6 Simplex SC/APC SM Adapters6 Position SC Panel,
Pre-Loaded with 6 Simplex SC/APC SM Adapters
Call to Order

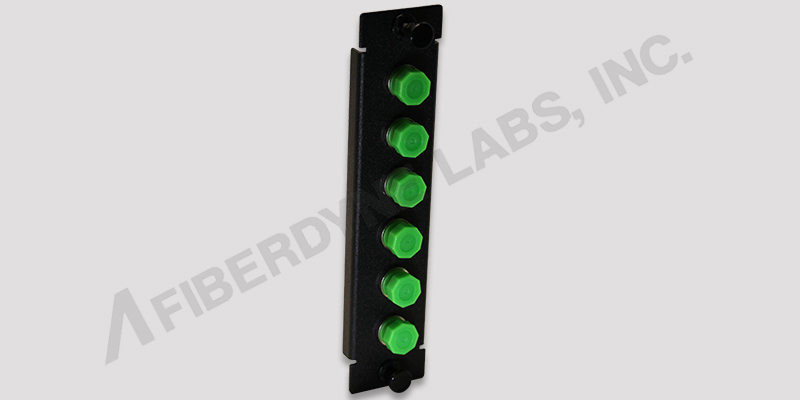

FPA6FCA     6 Position FC Panel, Pre-Loaded with 6 Simplex FC/APC SM Adapters6 Position FC Panel,
Pre-Loaded with 6 Simplex FC/APC SM Adapters
Call to Order




FPA6STU     6 Position ST Panel, Pre-Loaded with 6 Simplex ST SM Adapters6 Position ST Panel,
Pre-Loaded with 6 Simplex ST SM Adapters
Call to Order

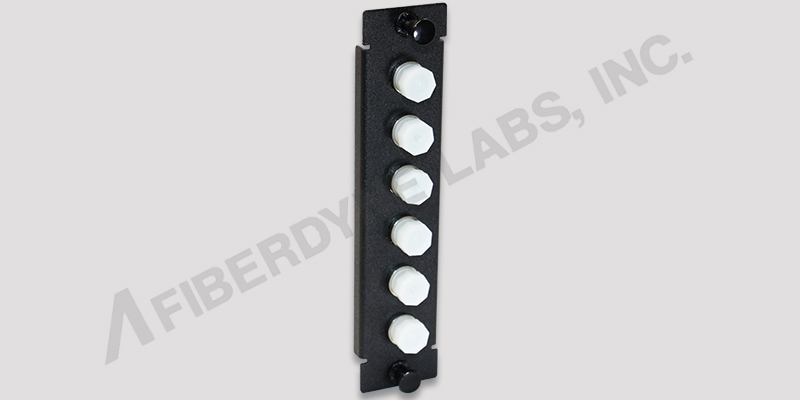

FPA6FC     6 Position FC Panel, Pre-Loaded with 6 Simplex FC SM, MM 62.5um or 50um Adapters6 Position FC Panel,
Pre-Loaded with 6 Simplex FC SM, MM 62.5um or 50um Adapters
Call to Order

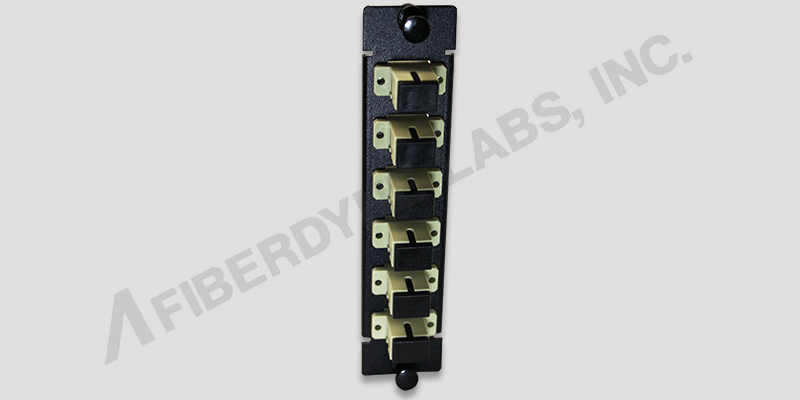

FPA6SCM     6 Position SC Panel, Pre-Loaded with 6 Simplex SC MM Adapters6 Position SC Panel,
Pre-Loaded with 6 Simplex SC MM Adapters
Call to Order

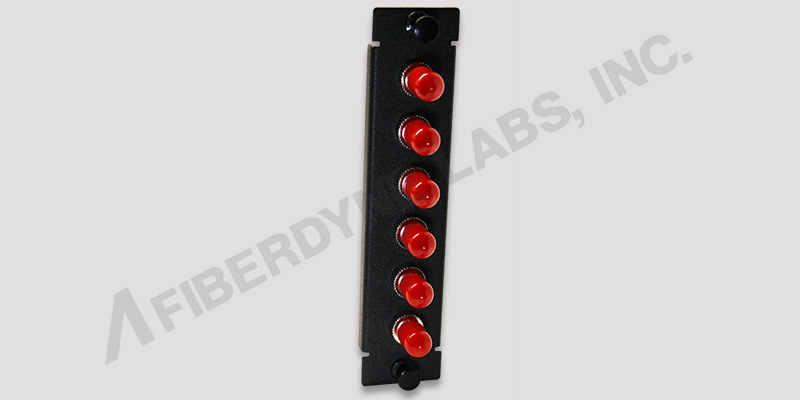

FPA6STM     6 Position ST Panel, Pre-Loaded with 6 Simplex ST MM Adapters, 62.5um or 50um6 Position ST Panel,
Pre-Loaded with 6 Simplex ST MM Adapters, 62.5um or 50um
Call to Order

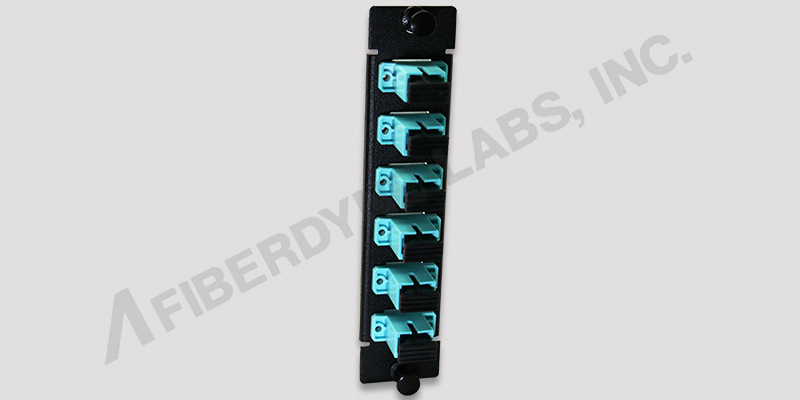

FPA6SCQ     6 Position SC Panel, Pre-Loaded with 6 Simplex SC MM Aqua Adapters6 Position SC Panel,
Pre-Loaded with 6 Simplex SC MM Aqua Adapters
Call to Order



8 Pack Panels

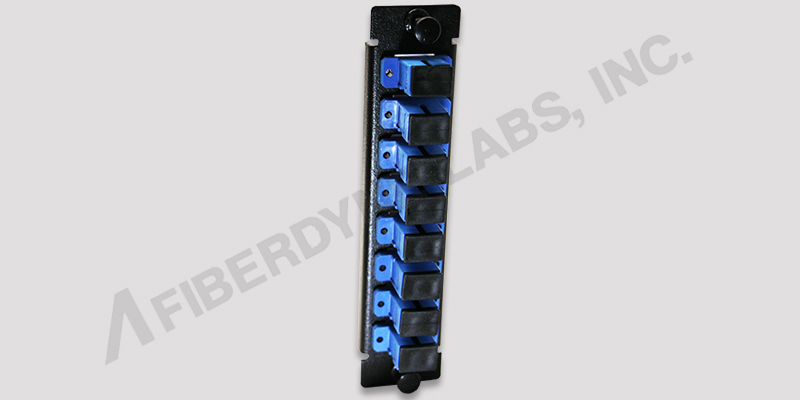

FPA8SCU     8 Position SC Panel, Pre-Loaded with 8 Simplex SC/UPC SM Adapters8 Position SC Panel,
Pre-Loaded with 6 Simplex SC/UPC SM Adapters
Call to Order

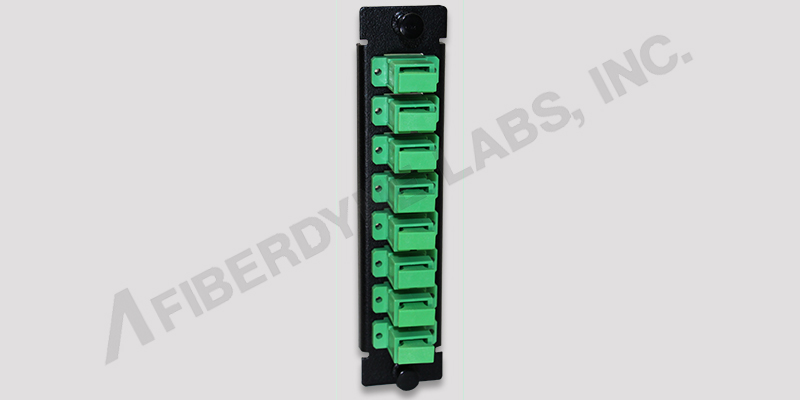

FPA8SCA     8 Position SC Panel, Pre-Loaded with 8 Simplex SC/APC SM Adapters8 Position SC Panel,
Pre-Loaded with 8 Simplex SC/APC SM Adapters
Call to Order

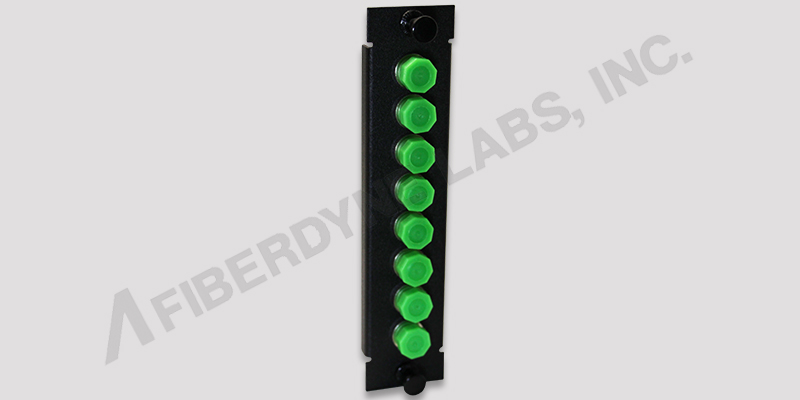

FPA8FCA     8 Position FC Panel, Pre-Loaded with 8 Simplex FC/APC SM Adapters8 Position FC Panel,
Pre-Loaded with 8 Simplex FC/APC SM Adapters
Call to Order




FPA8ST     8 Position ST Panel, Pre-Loaded with 8 Simplex ST SM/MM 62.5um or 50um Adapters8 Position ST Panel,
Pre-Loaded with 8 Simplex ST SM/MM 62.5um or 50um Adapters
Call to Order

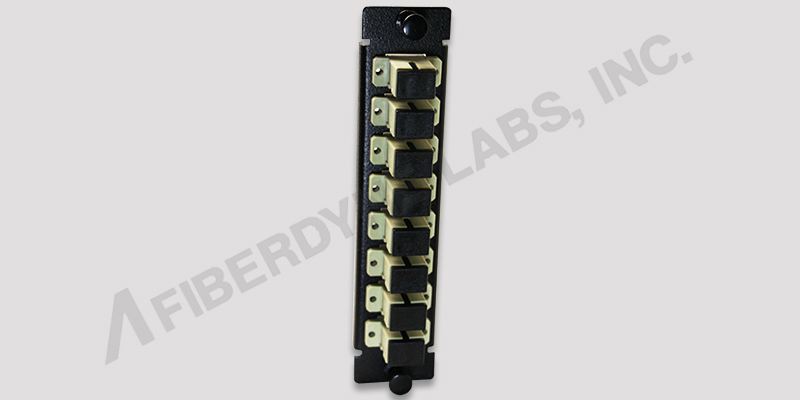

FPA8SCM     8 Position SC Panel, Pre-Loaded with 8 Simplex SC MM Adapters8 Position SC Panel,
Pre-Loaded with 8 Simplex SC MM Adapters
Call to Order

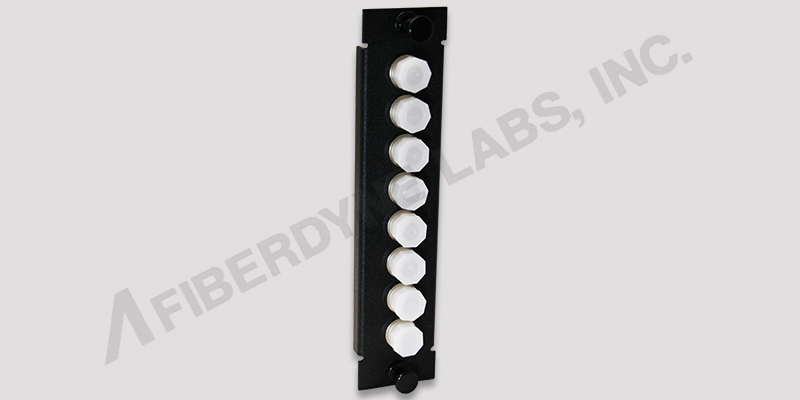

FPA8FC     8 Position FC Panel, Pre-Loaded with 8 Simplex FC SM/MM 62.5um or 50um Adapters8 Position FC Panel,
Pre-Loaded with 8 Simplex FC SM/MM 62.5um or 50um Adapters
Call to Order

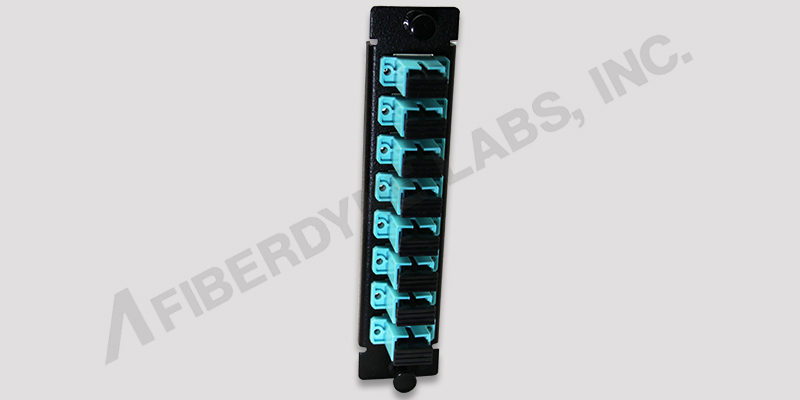

FPA8SCQ     8 Position SC Panel, Pre-Loaded with 8 Simplex SC MM Aqua Adapters8 Position SC Panel,
Pre-Loaded with 8 Simplex SC MM Aqua Adapters
Call to Order



12 Pack Panels

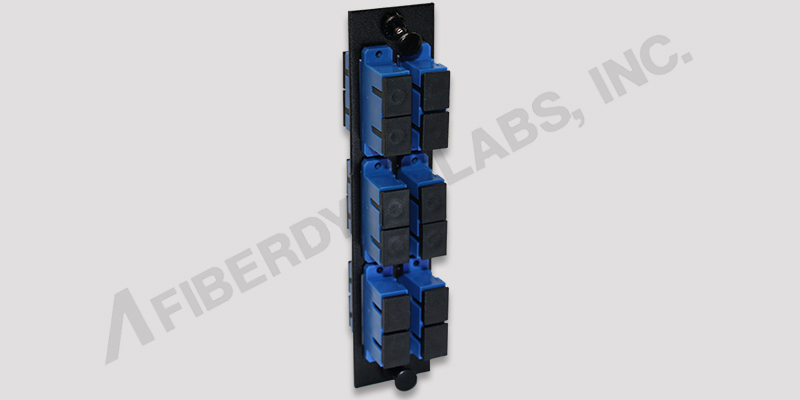

FPA12SCU     6 Position SC Panel, Pre-Loaded with 6 Simplex SC/UPC SM Adapters6 Position SC Panel,
Pre-Loaded with 6 Duplex SC/UPC SM Adapters
Call to Order

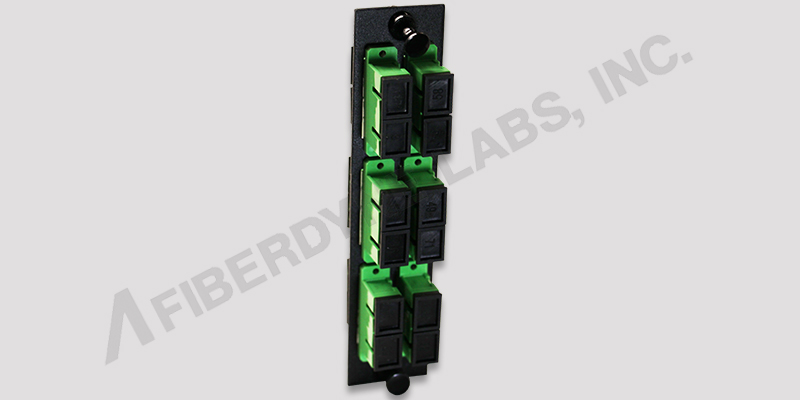

FPA12SCA     6 Position SC Panel, Pre-Loaded with 6 Duplex SC/APC SM Adapters6 Position SC Panel,
Pre-Loaded with 6 Duplex SC/APC SM Adapters
Call to Order




FPA12LCS     6 Position LC Panel, Pre-Loaded with 6 Duplex LC/UPC SM Adapters6 Position LC Panel,
Pre-Loaded with 6 Duplex LC/UPC SM Adapters
Call to Order

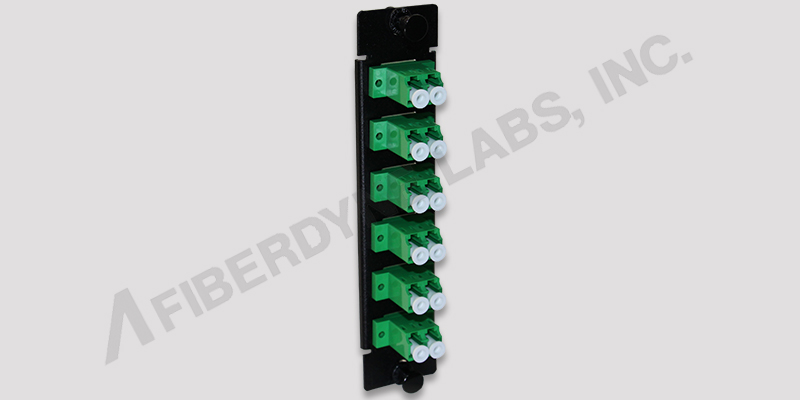

FPA12LCA     6 Position LC Panel, Pre-Loaded with 6 Duplex LC/APC SM Adapters6 Position LC Panel,
Pre-Loaded with 6 Duplex LC/APC SM Adapters
Call to Order




FPA12MJS     6 Position MTRJ Panel, Pre-Loaded with 6 Duplex MTRJ SM Adapters6 Position MTRJ Panel,
Pre-Loaded with 6 Duplex MTRJ SM Adapters
Call to Order

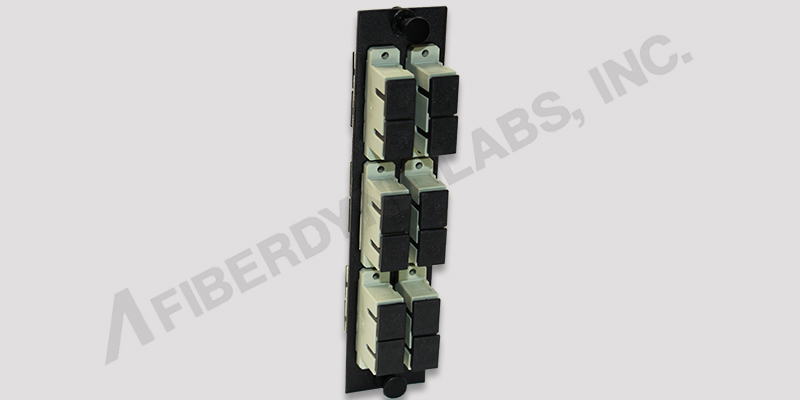

FPA12SCM     6 Position SC Panel, Pre-Loaded with 6 Duplex SC MM Adapters6 Position SC Panel,
Pre-Loaded with 6 Duplex SC MM Adapters
Call to Order

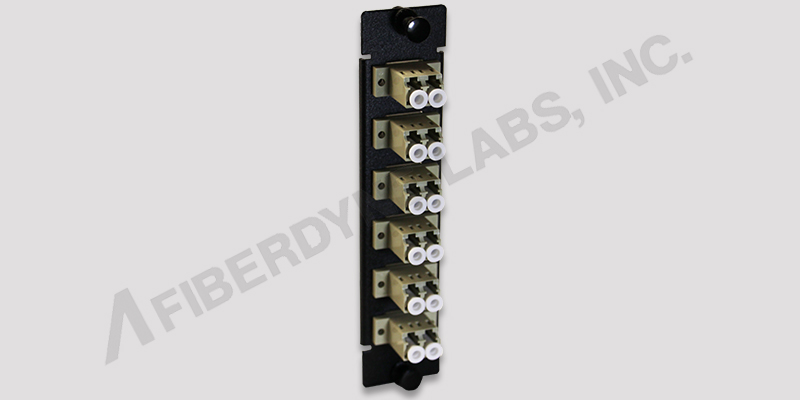

FPA12LCM      6 Position LC Panel, Pre-Loaded with 6 Duplex LC MM Adapters6 Position LC Panel,
Pre-Loaded with 6 Duplex LC MM Adapters
Call to Order




FPA12MJM      6 Position MTRJ Panel, Pre-Loaded with 6 Duplex MTRJ MM Adapters6 Position MTRJ Panel,
Pre-Loaded with 6 Duplex MTRJ MM Adapters
Call to Order

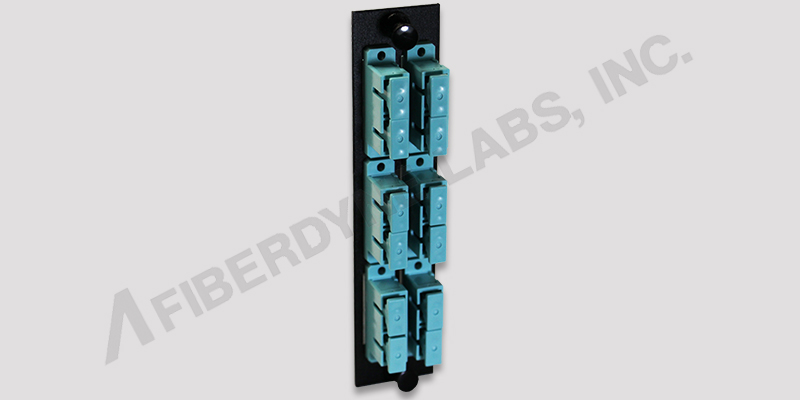

FPA12SCQ      6 Position SC Panel, Pre-Loaded with 6 Duplex SC Aqua MM Adapters 6 Position SC Panel,
Pre-Loaded with 6 Duplex SC Aqua MM Adapters
Call to Order




FPA12MJQ      6 Position MTRJ Panel, Pre-Loaded with 6 Duplex MTRJ MM Aqua Adapters6 Position MTRJ Panel,
Pre-Loaded with 6 Duplex MTRJ MM Aqua Adapters
Call to Order

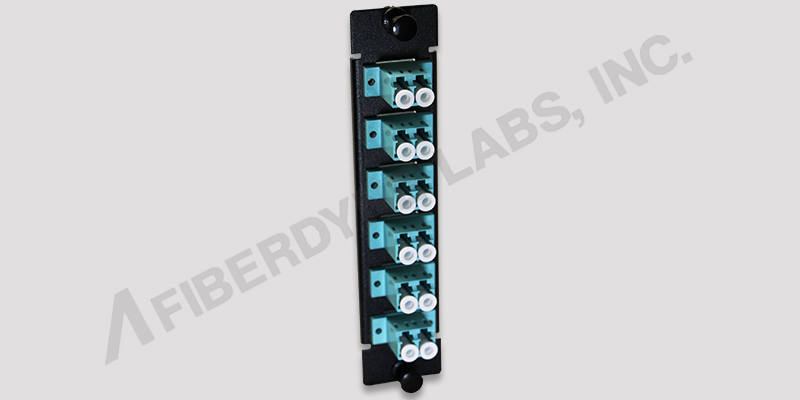

FPA12LCQ      6 Position LC Panel, Pre-Loaded with 6 Duplex LC Aqua Adapters6 Position LC Panel,
Pre-Loaded with 6 Duplex LC Aqua Adapters
Call to Order



MTP 12 Position Panel



FPA72MPM     6 Position MTP Panel, Pre-Loaded with 6 12 Fiber MTP MM Adapters6 Position MTP Panel,
Pre-Loaded with 6 12 Fiber MTP MM Adapters
Call to Order




FPA72MPQ      6 Position MTP Panel, Pre-Loaded with 6 12F MTP MM Aqua Adapters6 Position MTP Panel,
Pre-Loaded with 6 12F MTP MM Aqua Adapters
Call to Order



LC 24 Position Panel



FPA24LCM     6 Position LC Adapter Panel, Pre-Loaded with 6 Quad LC MM Beige Adapters6 Position LC Adapter Panel,
Pre-Loaded with 6 Quad LC MM Beige Adapters
Call to Order

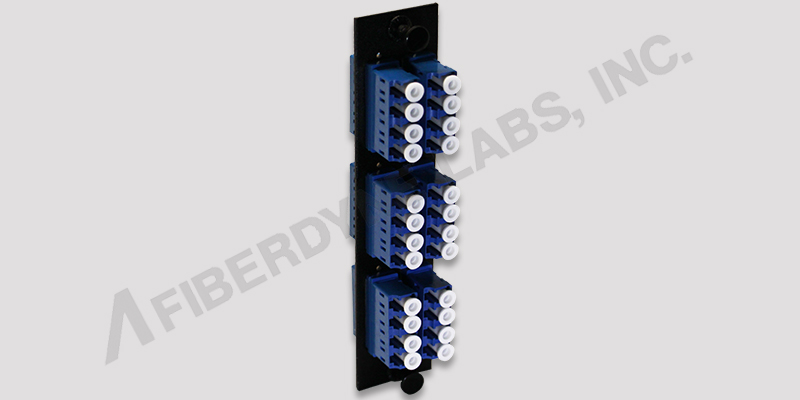

FPA24LCS     6 Position LC Adapter Panel, Pre-Loaded with 6 Quad LC Blue Adapters6 Position LC Adapter Panel,
Pre-Loaded with 6 Quad LC Blue Adapters
Call to Order

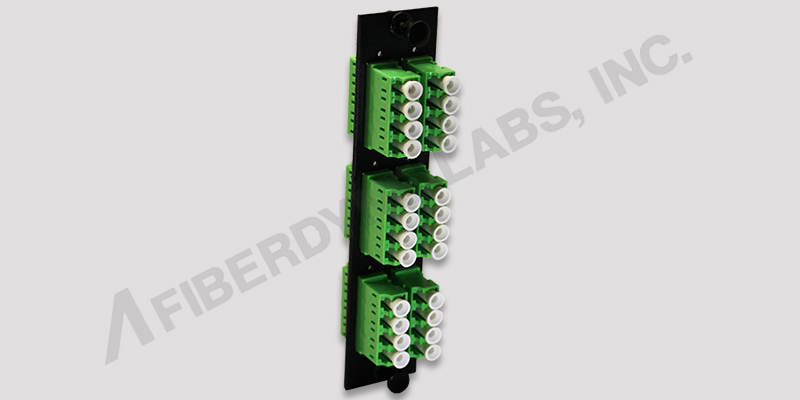

FPA24LCA     6 Position LC Adapter Panel, Pre-Loaded with 6 Quad LC Green Adapters6 Position LC Adapter Panel,
Pre-Loaded with 6 Quad LC Green Adapters
Call to Order

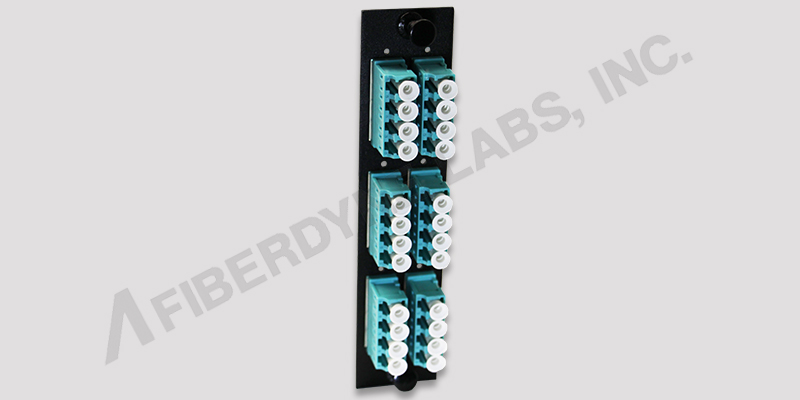

FPA24LCQ     6 Position LC Adapter Panel, Pre-Loaded with 6 Quad LC Aqua Adapters6 Position LC Adapter Panel,
Pre-Loaded with 6 Quad LC Aqua Adapters
Call to Order
