Managed 6-Port L2 Gigabit Ethernet Switches with 1 dual-speed SFP Slot

Introduction:

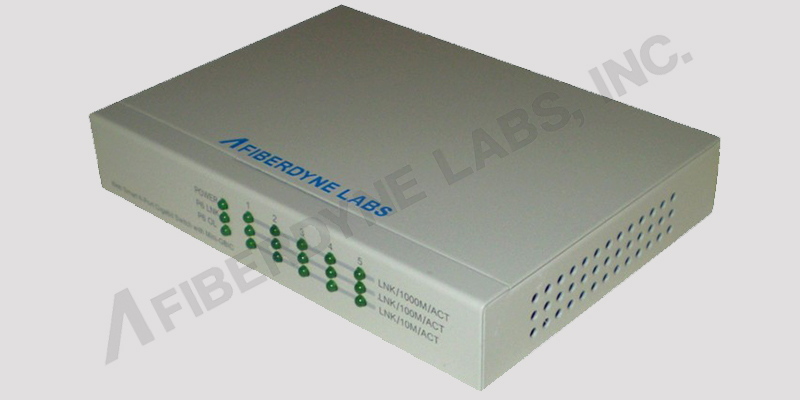

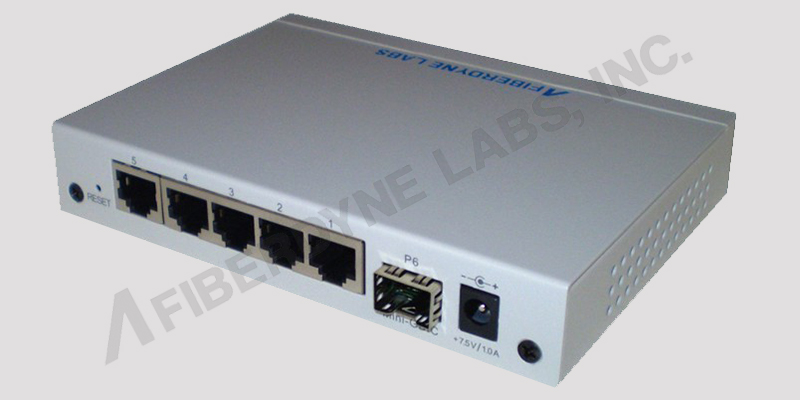

    The device is a 6-port Gigabit Ethernet switch which is featured with the following communication ports in a small footprint box:
  • - Five 10/100/1000Mbps Gigabit copper ports
  • - One dual-speed SFP slot for 100Base-FX 1000Base-X



Features:
  • - 5 10/100/1000Mbps RJ-45 and one dual-speed SFP slot
  • - All copper ports support auto-negotiation and auto-MDI/MDI-X detection
  • - The SPF slot supports dual speed for 100Base-FX and 1000Base-X SFP transceivers
  • - Full wire speed forwarding
  • - Supports 802.3x flow control for full-duplex and backpressure for half-duplex
  • - Supports SFP with Digital Diagnostic Monitoring (DDM)
  • - Provides Automatic Laser Shutdown (ALS) function
  • - Provides fiber optical power Alarm (OPA) function
  • - Alarm e-mail notification



Management Features:
  •   Management:
  •   - HTTP/HTTPS/SSHv2/CLI telnet/SNMP v1/v2c/v3/RMON
  •   - DHCP/DHCPv6 client, DNS client, NTPv4
  •   - IPv6 support, System Syslog, Configuration download/upload, Software upload
  •   - KTI's private MIB for DDM monitoring, OPA, ALS, Remote boot, TFTP firmware update over SNMP
  •   Security:
  •   - NAS, 802.1x, MAC-based/Web/CLI authentication
  •   - IP MAC binding, TACACS+, IP source guard
  •   Layer 2:
  •   - QoS, 802.1Q/Private VLAN, Port Isolation
  •   - Storm control for UC/MC/BC packets
  •   - Static MAC configuration
  •   - IGMP v2/v3 snooping, MLD v1/v2 snooping, DHCP snooping
  •   - Multiple Spanning Tree - MSTP, RSTP, STP



Specifications:



StandardIEEE 802.3, 802.3ab, 802.3z, 802.3x, 802.1x, 802.1w, 802.1D, 802.1Q
Network Ports5 10/100/1000Mbps Gigabit copper ports, 1 1G/100Mbps SFP Slot
Copper PortShielded RJ-45, 10/100/1000Mpbs, auto-negotiation, auto-MDI/MDI-X support
Mini-GBIC SFPSFP connector Interface 1000Base-x and 100Base-FX support
Network Cables10/100/1000Mbps copper Cat 5 up to 100m
1000Base-X 62.5/125um, 50/125um MM fiber, 9/125um SM fiber
MAC AddressesTable with 8k entries
Buffer Memory4Mbits
LED IndicationPer Unit: Power
Per Port: Speed/link/activity status
SFP port: Speed, Link/activity status
Buffer Memory4Mbits
Power InputDC jack, Voltage range: +5 ~ +30VDC via external power adapter
Power Consumption5.4W max. @120VDC (DC In)
HousingEnclosed metal with no fan
Dimension144 x 104.5 x 26mm (WxDxH)
Mounting SupportDesktop and wall mounting
EnvironmentOperating Temperature:    -10°C ~ 45°C (Main device)
Storage Temperature:       -40°C ~ 85°C
Relative Humidity:              5% ~ 95% non-condensing
ApprovalFCC Class A, CE mark Class A, VCCI Class A, IEC60950-1 safety



Ordering Information:
Part Number Description Buy
VS-G510-D 6-port Gigabit Ethernet switch Call to Order
Gigabit SFP
(sold separately)

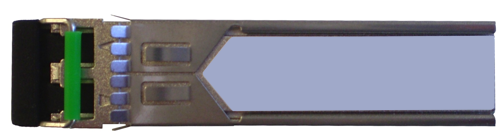

For a selection of SFP Modules which can be used in this switch, please click the below picture.
SFP Module
