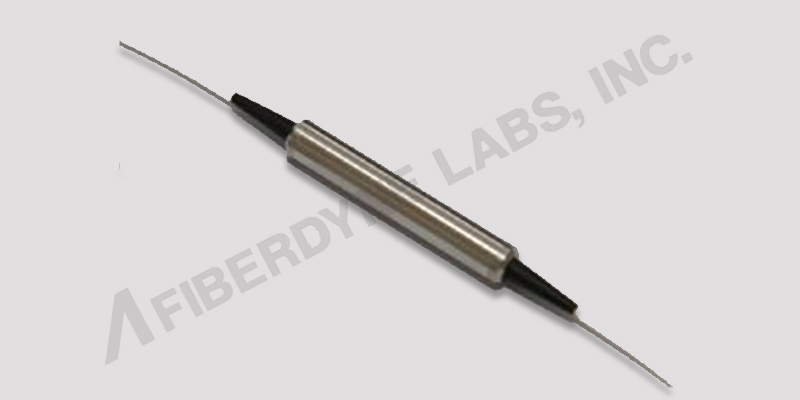

Wideband Dual Stage Polarization Insensitive Isolator



Introduction:

An optical isolator is a passive device that allows light to travel in only one direction. It is used in applications to prevent unwanted feedback into the system.

Features:

• - Wide Operating Wavelength
• - High Isolation & Low Insertion Loss & Low PDL
• - Epoxy-Free Optical Path

Applications:

•     - EDFA
•     - Transmitter
•     - WDM System
•     - Testing Equipment





Specifications:
PDF Version of Web page

Parameter                                         Type		C+L Band	S+C+L Band
Operating Wavelength (nm)		1530~1610	1460~1620
Peak Isolation		58	58
Isolation (@23 ( °C) (dB)		≥35	≥32
Insertion Loss (@-5~+70 °C) (dB)		≤0.8	≤0.9
PDL		≤0.10	≤0.10
Return Loss (dB)		≥50/50
Power Handling (mW)		≤300
Fiber Type		SMF-28e
Operating Temperature °C		-5 ~ +70
Storage Temperature °C		-40 ~ +80

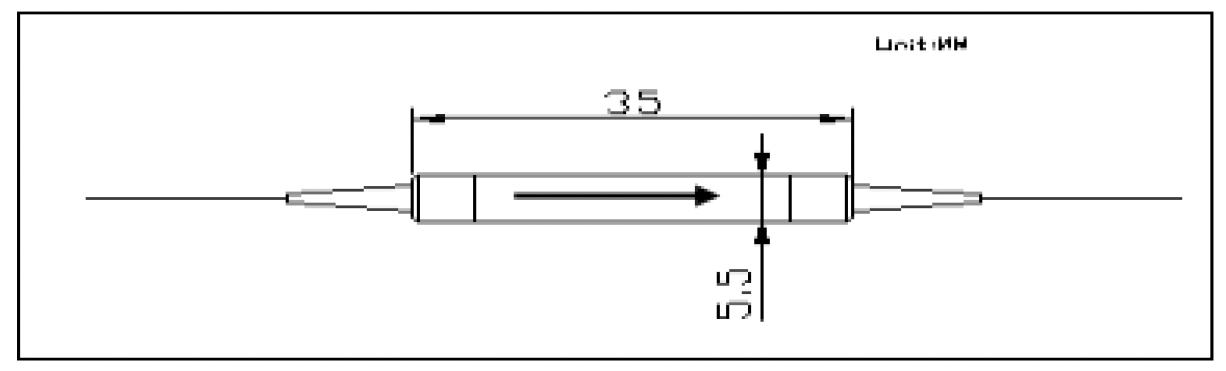

Dimensions (mm)		ᵠ5.5xL35(P1)



FWISO - X XXX XX XX X X F = Fiberdyne   Type Wavelength Fiber Type Fiber Length Package Type Connector W = Wideband   Dual Stage OCL = 1530~1610 02 = 250µm 1 = 1.0m A = Standard Steel Tube None ISO = Isolator     SCL = 1460~1620 09 = 0.9mm (900µm) S = Custom (Specify) C = Filter Case (100 x 31 x 8mm) 1 = FC/UPC         20 = 2.0mm   F = Field Mod. (100 x 80 x 10mm) 2 = FC/APC         30 = 3.0mm   L = LGX Module 3 = SC/UPC             R = 1u Rack Module 4 = SC/APC             S = Custom (Specify) 7 = Custom (Specify)             W = Wallmount L = LC/UPC               N = LC/APC
