Fiberdyne Labs Configuartion 900, MPO-MPO, 12 Pin 12 Fiber to 12 Pin 12 Fiber, Mapped Pin 1 to Pin 1, Polarity A

Configuartion 900, MPO-MPO, 12 Pin 12 Fiber to 12 Pin 12 Fiber, Mapped Pin 1 to Pin 1, Polarity A



Back to MPO Introduction Page



View PDF Version

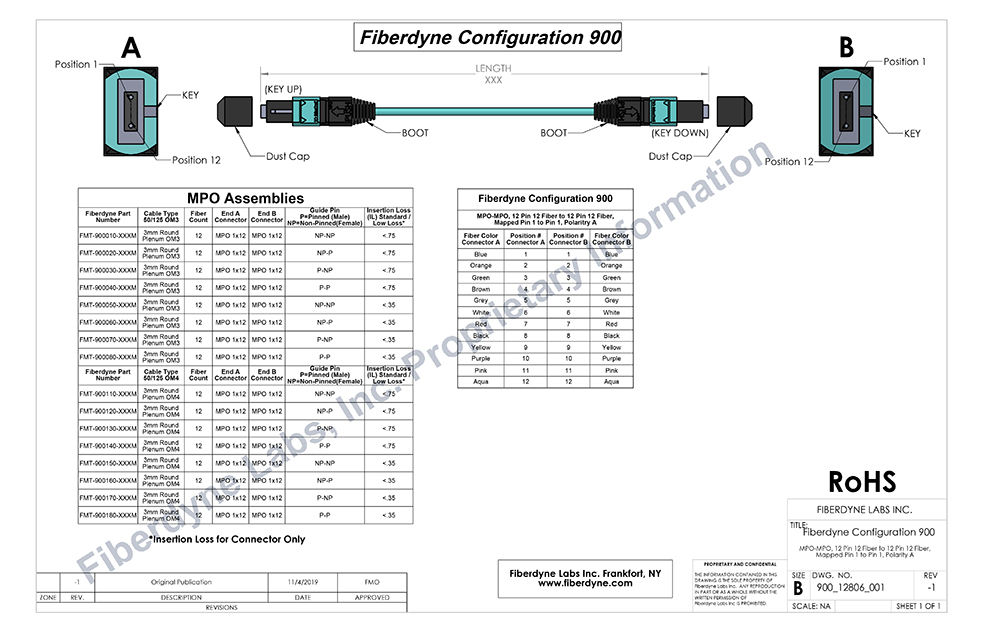

Note: Configurations illustrated below indicate an alignment pin option of No Pin to No Pin (NP-NP).
If other alignment pinning is required, see part number matrix in the drawing.
Prices are the same regardless of pinning.



OM3 3.0 Round Plenum Cable Assemblies
Fiberdyne
Part Number
Description Buy
FMT-900010-XXXM Configuration 900,
MPO-MPO, 12 Pin 12 Fiber to 12 Pin 12 Fiber
NP-NP, .75dB, Polarity A, OM3 Plenum
Call to Order
FMT-900020-XXXM Configuration 900,
MPO-MPO, 12 Pin 12 Fiber to 12 Pin 12 Fiber
NP-NP, .75dB, Polarity A, OM3 Plenum
Call to Order
FMT-900040-XXXM Configuration 900,
MPO-MPO, 12 Pin 12 Fiber to 12 Pin 12 Fiber
NP-NP, .75dB, Polarity A, OM3 Plenum
Call to Order
FMT-900050-XXXM Configuration 900,
MPO-MPO, 12 Pin 12 Fiber to 12 Pin 12 Fiber
NP-NP, .75dB, Polarity A, OM3 Plenum
Call to Order
FMT-900060-XXXM Configuration 900,
MPO-MPO, 12 Pin 12 Fiber to 12 Pin 12 Fiber
NP-NP, .75dB, Polarity A, OM3 Plenum
Call to Order
FMT-900080-XXXM Configuration 900,
MPO-MPO, 12 Pin 12 Fiber to 12 Pin 12 Fiber
NP-NP, .75dB, Polarity A, OM3 Plenum
Call to Order



OM4 3.0 Round Plenum 10G Cable Assemblies
Fiberdyne
Part Number
Description Buy
FMT-900110-XXXM Configuration 900,
MPO-MPO, 12 Pin 12 Fiber to 12 Pin 12 Fiber
NP-NP, .75dB, Polarity A, OM4 Plenum
Call to Order
FMT-900120-XXXM Configuration 900,
MPO-MPO, 12 Pin 12 Fiber to 12 Pin 12 Fiber
NP-NP, .75dB, Polarity A, OM4 Plenum
Call to Order
FMT-900140-XXXM Configuration 900,
MPO-MPO, 12 Pin 12 Fiber to 12 Pin 12 Fiber
NP-NP, .75dB, Polarity A, OM4 Plenum
Call to Order
FMT-900150-XXXM Configuration 900,
MPO-MPO, 12 Pin 12 Fiber to 12 Pin 12 Fiber
NP-NP, .75dB, Polarity A, OM4 Plenum
Call to Order
FMT-900160-XXXM Configuration 900,
MPO-MPO, 12 Pin 12 Fiber to 12 Pin 12 Fiber
NP-NP, .75dB, Polarity A, OM4 Plenum
Call to Order
FMT-900180-XXXM Configuration 900,
MPO-MPO, 12 Pin 12 Fiber to 12 Pin 12 Fiber
NP-NP, .75dB, Polarity A, OM4 Plenum
Call to Order
New York

Fiberdyne Labs manufactures MPOs in a variety of configurations.
Call your Fiberdyne Sales Representative at 800-894-9694 or email us at
