AFL FlexScan® FS300 Quad OTDR



Products listed below:
AFL FlexScan® FS300
AFL FlexScan® FS200
AFL ROGUE OLTS/Certification Modules



AFL FlexScan® FS300 Quad OTDR Pocket-sized, Performance-packed, User-friendly and Fast

    Performance-packed: With SmartAuto multi-pulse acquisition, 37 dB dynamic range and best-in-class dead zones, FlexScan Quad OTDRs test multimode and single-mode networks – including FTTH PONs and POLANs up to 1:64 split ratio – while still detecting and measuring events <2 meters apart.

    User-friendly: FlexScan OTDRs enable both expert and novice technicians to quickly, reliably and accurately detect, locate, identify and measure optical network components and faults. After applying industry-standard or user-set pass/fail criteria, the network is displayed using FlexScan’s intuitive, icon-based LinkMap view. Results may be printed to PDF and stored internally or externally. FlexScan automates test setup, shortens test time and simplifies results interpretation, improving test efficiency and cost.

    Pocket-sized: FlexScan OTDRs truly fit in your pocket, yet still deliver all-day battery operation plus a large, bright, indoor/outdoor, 5-inch 800x480 touchscreen display. With large touch controls, you’ll never need a stylus. All-in-one test capability: With optional connector inspection, integrated optical light source, power meter and VFL, FlexScan provides an all-in one solution, ensuring technicians have everything they need to locate and resolve optical network issues. Uploaded results may be viewed and professional reports may be generated using the included Windows-compatible TRM 3.0 Test Results Manager software.

    Available in Convenient, Cost-saving Installation and Troubleshooting Kits: Bundle FlexScan with choice of launch cable, FOCIS Flex connector inspection probe and tips, and/or AFL’s universal optical fiber identifier (OFI).
New York



Features:
  • - Test MM and SM, point-to-point and PON
  • - Detects closely spaced events without sacrificing range
  • - LinkMap icons clearly identify event type & pass/fail status
  • - Best-in-class 25 m PON dead zone
  • - Print-to-PDF plus internal & external data storage
  • - Integrated Source, Power Meter, Visual Fault Locator
  • - Bluetooth & WiFi communications
  • - Tether-free connector inspection with FOCIS Flex/Duel
  • - Rugged, lightweight, hand-held for field use
  • - 5” 800 x 480 color touchscreen LCD



Applications:
  • - OTDR and Insertion Loss test & reporting
  • - Fast, accurate pt-to-pt & PON verification & troubleshooting
  • - Locate faults exceeding industry or user pass/fail thresholds
  • - Visually pinpoint location of macro-bends or breaks



Specifications:
Technical Data Sheet AFL FlexScan® FS300 Quad OTDR Technical Data Sheet



Ordering Information
Model # Description AFL Part Number Fiberdyne Part Number Buy
Quad OTDR FlexScan FS300
Quad OTDR VFL,
OLS/OPM,BT/WiFi,
UPC Connector
FS300-325-BAS-P1-W1-U-ENG-US FDLFS300-325-BAS-P1-W1-U-ENG-US Call to Order





AFL FlexScan® FS200 OTDR with SmartAuto®, FleXpress™ and LinkMap® Pocket-sized, Performance-packed, User-friendly, and Affordable

    Performance-packed: With SmartAuto multi-pulse acquisition, up to 37 dB dynamic range and best-in-class 25 m PON dead zone, FlexScan PON OTDRs test FTTH PONs up to 1:64 while still detecting and measuring events only meters apart.

    Fast! FleXpress mode completes dual-wavelength tests in <5 seconds – 10 x faster than conventional OTDRs! For multi-fiber testing, FleXpress mode automatically controls 12-fiber MPO Switch to further reduce multi-fiber test time.

    User-friendly: FlexScan OTDRs enable both novice and expert technicians to quickly, reliably and accurately detect, locate, identify and measure optical network components and faults. After applying industry-standard or user-set pass/fail criteria, the network is displayed using FlexScan’s intuitive, icon-based LinkMap view. Acquired results may be stored internally or externally. FlexScan automates test setup, shortens test time and simplifies results interpretation, improving efficiency and reducing the cost of test.

    Pocket-sized: At 3.5 x 6 x 1.75 in. (86 x 160 x 43 mm) and less than one pound (0.4 kg), FlexScan OTDRs truly fit in your pocket, yet still provide a large, bright indoor/outdoor touchscreen display and all-day operation.

    And Affordable: With optional connector inspection, integrated source, power meter and VFL, FlexScan offers an all-in one solution, ensuring technicians have everything they need to locate and resolve optical network issues. Uploaded results may be viewed and reports may be generated using the included Windows-compatible TRM® 2.0 Test Results Manager software.

    Available in Convenient, Cost-saving Installation and Troubleshooting Kits - Bundle FlexScan with your choice of launch cable, FOCIS Flex connector inspection probe and tips, and/or AFL’s universal optical fiber identifier (OFI).
Frankfort, New York



Features:
  • - Fast, accurate OTDR network characterization or fault location
  • - FleXpress mode completes OTDR test in <5 seconds
  • - Integrated MPO Switch control via USB
  • - Test up to 1:64 PON with 25 m PON dead zone
  • - Easy to understand LinkMap results with pass/fail indications
  • - Single, dual or triple wavelength single-mode
  • - Integrated Source, Power Meter, VFL (visual fault locator)
  • - Bluetooth and WiFi communications
  • - Compatible with FOCIS Flex connector inspection system
  • - Rugged, lightweight, hand-held for field use
  • - Large, bright touchscreen display easily viewed indoors and out
  • - Internal / external data storage



Applications:
  • - PON or point-to-point network verification or troubleshooting
  • - OTDR testing plus Insertion Loss and Power measurements
  • - Locate faults exceeding industry or user pass/fail thresholds
  • - Visually pinpoint location of macro-bends or breaks



Specifications:
Technical Data Sheet Technical Data Sheet



Ordering Information
Model # Description AFL Part Number Fiberdyne Part Number Buy
PON OTDR FlexScan FS200-304
1310/1550/1650
PON OTDR VFL, OLS/OPM,BT/WiFi,
UPC Connector
FS200-304-BAS-P1-W1-U-ENG-US FDLFS200-304-BAS-P1-W1-U-ENG-US Call to Order
1310/1550 OTDR FlexScan FS200-300
1310/1550 OTDR VFL, OLS/OPM,BT/WiFi,
UPC Connector
FS200-300-BAS-P1-W1-U-ENG-US FDLFS200-300-BAS-P1-W1-U-ENG-US Call to Order
1310/1550 OTDR FlexScan FS200-100
1310/1550 OTDR VFL, OLS/OPM,BT/WiFi,
UPC Connector
FS200-200-BAS-P1-W1-U-ENG-US FDLFS200-200-BAS-P1-W1-U-ENG-US Call to Order

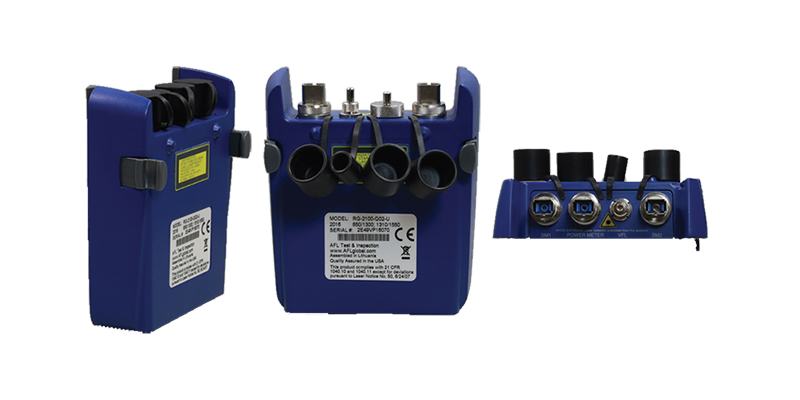

AFL ROGUE OLTS/Certification Modules with TURBO App

    Each ROGUE OLTS test module uses state-of-the-art technology to produce the most accurate results in the shortest amount of time. Modules contain bi-directional test ports as well as an optical power meter port and visual fault locator. All Multimode ports are Encircled Flux compliant as required by ANSI/TIA and ISO/IEC.

    By pairing ROGUE modules with smart device apps, AFL’s patent pending architecture enables users to control their test hardware directly from any Android smart device. ROGUE users can easily turn the OLTS solution into a full Tier 1 certifier simply by adding our TURBO Certification app.

    Test configurations and instructions are pushed from AFL’s aeRos cloud solution to the TURBO app to simplify the process for technicians. When the testing is complete, the results automatically and seamlessly synchronize with the cloud for real-time, on-site test data validation. No more waiting for the technician to return with a USB stick and manually transfer the data. With two bi-directional engines, you can even test both fibers in both directions on 2 wavelengths. All with the push of a button on your smart device.

    If your network consists of multi-fiber cables and MPO connectors, simply add our Multi-fiber Switch to the ROGUE platform to perform bi-directional, dual-wavelength, multi-fiber testing. AFL’s FOCIS Flex wireless inspection probe can also be added for integrated and seamless capture of fiber endface images.

    Apps available via Google play store. Google Play



Features:
  • - Quad single-mode/multimode, Dual single-mode or Dual multimode
  • - Hot-swappable into ROGUE cB1 or iB1 units
  • - Use with aeRos cloud-based workflow management software
  • - Integrated FOCIS Flex Inspection capability
  • - Simultaneous, dual-wavelength, bi-directional loss and length testing through Dual Engine technology
  • - Integrated Source, Power Meter and Visual Fault Locator (VFL)
  • - Built-in Encircled Flux compliance



Applications:
  • - Tier 1 certification testing of premise/enterprise networks
  • - Dual-fiber, dual-wavelength, unidirectional or bi-directional OLTS testing
  • - Multi-fiber testing: loss, length, ORL, certification with one push of a button
  • - View results and generate reports anywhere, anytime using aeRos
  • - Integrated multi-wavelength, bi-directional MPO/multi-fiber testing using optional multi-fiber switch



Specifications:
Technical Data Sheet Technical Data Sheet



Ordering Information
Model # Description AFL Part Number Fiberdyne Part Number Buy
Rogue OLTS/Certification Rogue
OLTS/Certification Kit
Quad SM/MM with cB1 Base
RGK-CERT01 FDLRGK-CERT01 Call to Order
