75GHz 64-CH Flattop AAWG

Introduction:

Fiberdynes 75GHz 64-CH Flattop AAWG specifications serve for C-Band AWG Flattop Mux/Demux in the DWDM system.

Product Function:

• - 75GHz 64-CH Flattop AAWG

Applications:

• - The specifications serve for C-Band AWG Flattop Mux/Demux in DWDM system.

Specifications:

100G AAWG Field Module
50G AAWG Module
75GHz AAWG Module
10G Tunable DWDM



Absolute Maximum Ratings

Parameters Conditions Specifications Unit Operating Temperature Non-Condensing Environment -5~+65 °C Storage Temperature Device Not Powered on Heater Element -40~+85 °C



Optical Specifications:

Wavelength Parameter Wavelength Range Units Center Wavelength fc   Working Bandwidth (ITU Band) - WB fc±31.5 GHz Isolation Bandwidth - IBW fc±9.0 GHz



Optical Specifications:

Test Parameter Channel Ports Test Requirement Min Max Unit 0.5dB net half Bandwidth >22.5 GHz 3dB net half Bandwidth >36.0 GHz Mux/Demux Insertion Loss at ITU Grid EOL All ports at fc To be tested 4.0 6.5 dB Insertion Loss Varation All ports at ITU To be tested   1.5 dB Channel Isolation Adjacent Channel, To be tested 13   dB Non-Adjacent To be tested 30   dB Cumulative Isolation All ports over IBW To be tested 11   dB Return Loss All ports To be tested 36   dB Directivity All ports Guaranteed by design 45   dB PDL All Ports over WB To be tested   1.1 dB All Ports @ ITU To be tested   0.7 dB Differential Group Delay All ports over WB Guaranteed by design 1   ps Chromatic Dispersion All ports over WB Guaranteed by design -33 33 ps/nm



Channel Plan
Ch#	Wavelength (nm)	Frequency (THz)		Ch#	Wavelength (nm)	Frequency (THz)
(#)	(GHz)	(nm)		(#)	(GHz)	(nm)
1	1566.62	191.3625		33	1547.22	193.7625
2	1566.01	191.4375		34	1546.62	193.8375
3	1565.39	191.5125		35	1546.02	193.9125
4	1564.78	191.5875		36	1545.42	193.9875
5	1564.17	191.6625		37	1544.82	194.0625
6	1563.56	191.7375		38	1544.23	194.1375
7	1562.95	191.8125		39	1543.63	194.2125
8	1562.33	191.8875		40	1543.04	194.2875
9	1561.72	191.9625		41	1542.44	194.3625
10	1561.11	192.0375		42	1541.84	194.4375
11	1560.50	192.1125		43	1541.25	194.5125
12	1559.90	192.1875		44	1540.66	194.5875
13	1559.29	192.2625		45	1540.06	194.6625
14	1558.68	192.3375		46	1539.47	194.7375
15	1558.07	192.4125		47	1538.88	194.8125
16	1557.46	192.4875		48	1538.28	194.8875
17	1556.86	192.5625		49	1537.69	194.9625
18	1556.25	192.6375		50	1537.10	195.0375
19	1555.65	192.7125		51	1536.51	195.1125
20	1555.04	192.7875		52	1535.92	195.1875
21	1554.44	192.8625		53	1535.33	195.2625
22	1553.83	192.9375		54	1534.74	195.3375
23	1553.23	193.0125		55	1534.15	195.4125
24	1552.62	193.0875		56	1533.56	195.4875
25	1552.02	193.1625		57	1532.98	195.5625
26	1551.42	193.2375		58	1532.39	195.6375
27	1550.82	193.3125		59	1531.80	195.7125
28	1550.22	193.3875		60	1531.21	195.7875
29	1549.62	193.4625		61	1530.63	195.8625
30	1549.01	193.5375		62	1530.04	195.9375
31	1548.41	193.6125		63	1529.46	196.0125
32	1547.82	193.6875		64	1528.87	196.0875
Note:	All specifications being applicable to both Mux and Demux.

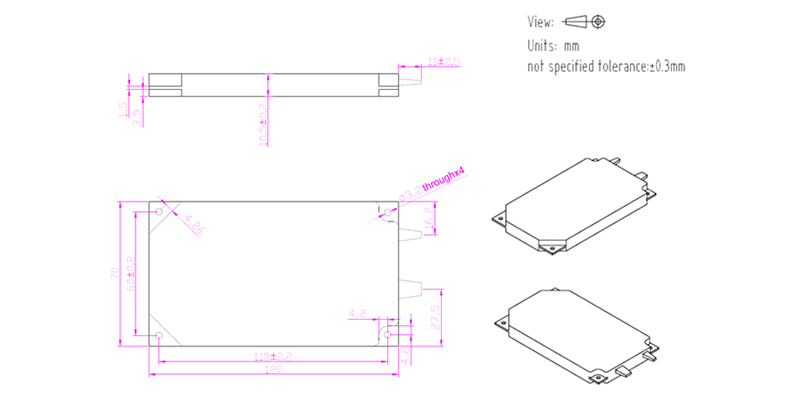

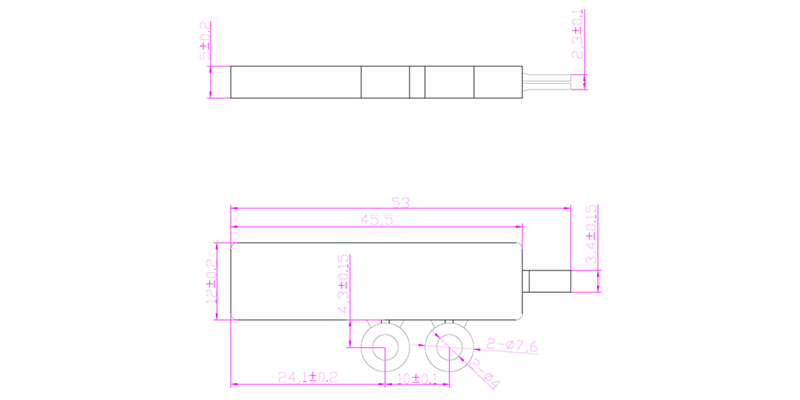

Mechanical Dimensions:

Parameter Specification Units Note Packaged Size 120 x 70 x 11 mm Mux or Demux

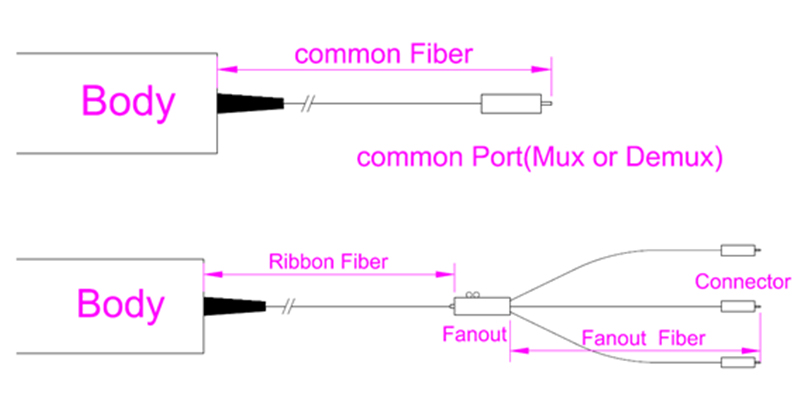

Pigtail and Connector:

Parameter Specification Units Pigtail Type (All Ports) SMF28e with 900um Loose Tube Fiber   Common Fiber 500±50 mm Ribbon Fiber 500±50 mm Fanout Fiber 500±50 mm Connector Type (All Ports) LC/UPC



Qualification:
       Reliability: Compliant to Telcordia GR-1209/1221
Environmental Safety:
       Compliant to ROHS6
Note: Typical channel plan: ITU wavelengths 50G H13 (1566.72)-C61(1528.77nm.)

Please contact your Sales Representative for ordering information
