Fiberdyne Labs, Inc. 6 Pack Singlemode Simplex OS2 900µm Pigtail Color Coded Assemblies

6 Pack Singlemode Simplex OS2 900µm Pigtail Assemblies

Other Connectors Available
2 & 3mm cables available


Fiber Optic Pigtails
12 Pack Singlemode Simplex OS2 900µm Pigtails


Technical Date Sheet Technical Date Sheet


Cable & Connector Specifications:
Fiber Type Singlemode OS2 (SMF-28)
Insertion Loss Per Connector
< 0.3dB, Typical 0.25dB
Return Loss VS. Polish TypeUPC: > 50dB, Typical 55dB
APC: > 60dB, Typical 65dB
Apex Offset< 50µm
Fiber Height< 100nm
Repeatability> 500 Cycles
Operating Temperature-40°C To +75°C
Humidity Range5% To 95% (Non-Condensing)
Strain Relief Boot Lengths2.2cm to 3.5cm Available


6 Pack Singlemode Simplex OS2 900um Pigtail Assemblies

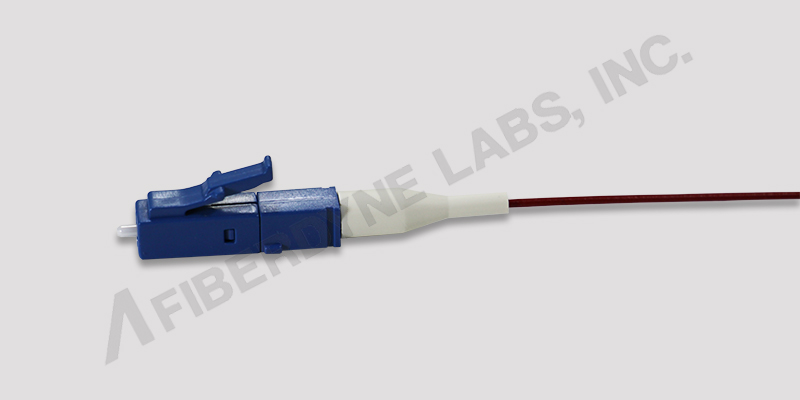

LC/UPC-Pigtail Simplex F9G1BA4GCL0XXXM-6PSpecify Length When Ordering

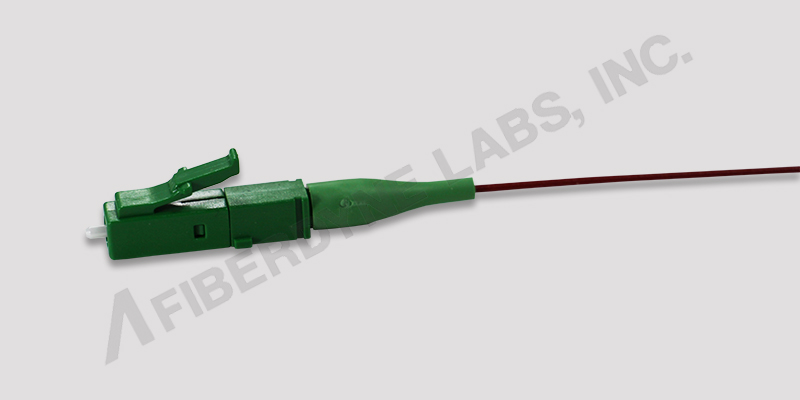

LC/APC-Pigtail Simplex F9G1BA4GCN0XXXM-6PSpecify Length When Ordering

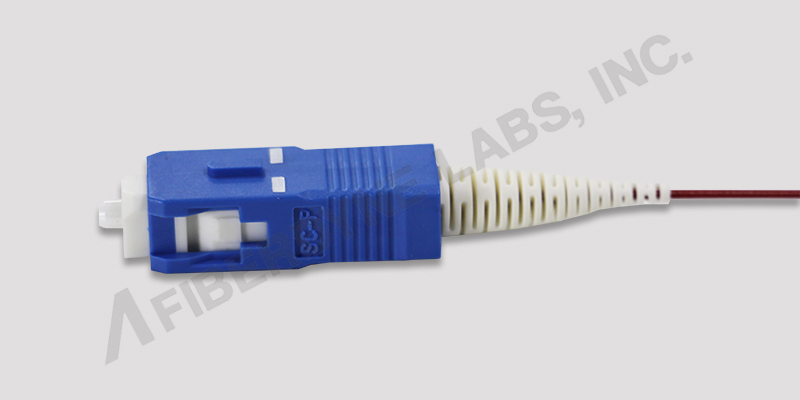

SC/UPC-Pigtail Simplex F9G1BA4GC60XXXM-6PSpecify Length When Ordering

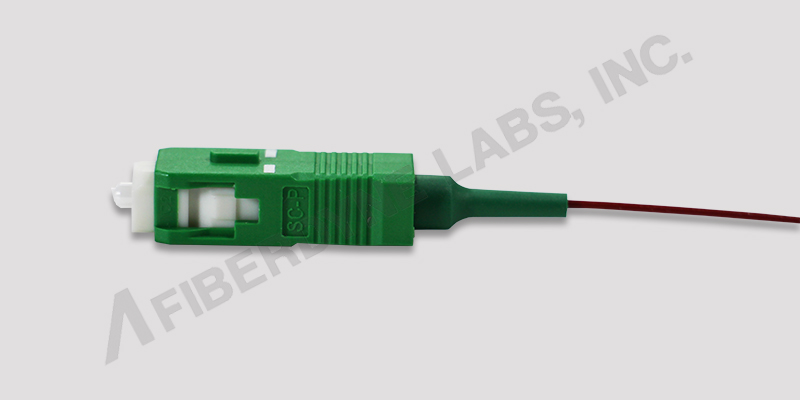

SC/APC-Pigtail Simplex F9G1BA4GCB0XXXM-6PSpecify Length When Ordering

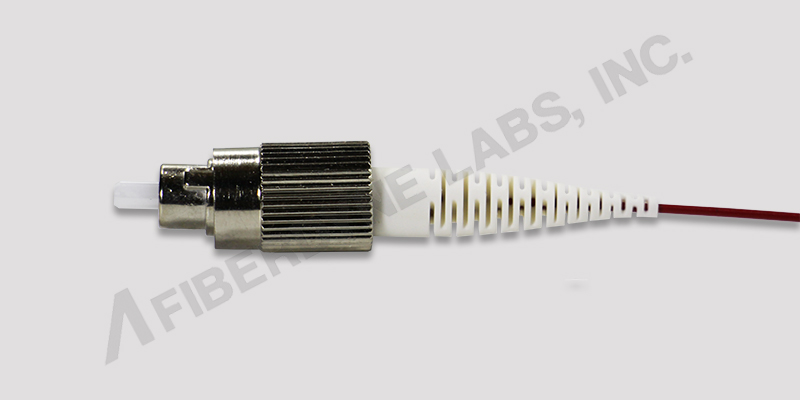

FC/UPC-Pigtail Simplex F9G1BA4GC70XXXM-6PSpecify Length When Ordering

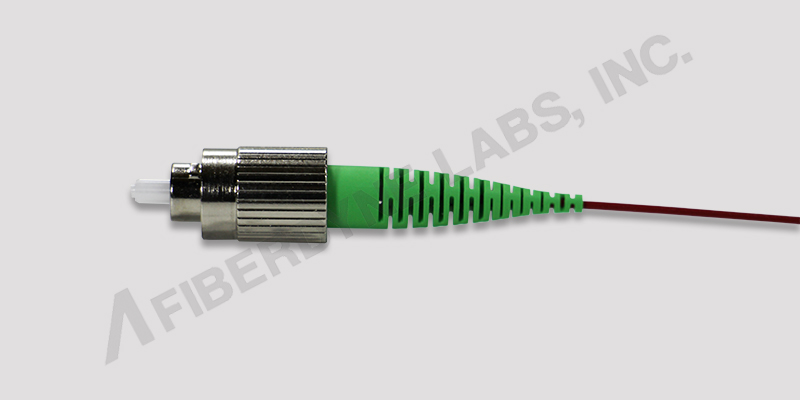

FC/APC-Pigtail Simplex F9G1BA4GCA0XXXM-6PSpecify Length When Ordering

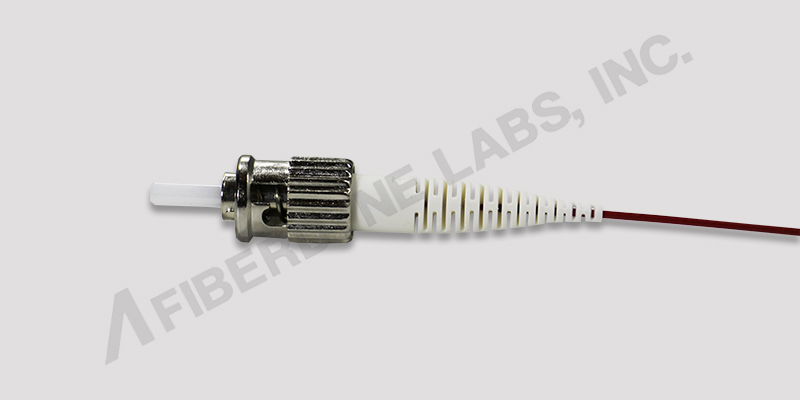

ST/UPC-Pigtail Simplex F9G1BA4GC10XXXM-6PSpecify Length When Ordering

Other Connector Combinations available.
