Fiberdyne Labs Configuration 948 MPO-MPO, Singlemode, 24 Position 24 Fiber to 24 Position 24 Fiber with Formable Boots

Configuration 948 MPO-MPO, Singlemode, 24 Position 24 Fiber to 24 Position 24 Fiber with Formable Boots, ANSI/TIA-568.3 Type B:2-2

Back to 24 Fiber Singlemode Assemblies Page

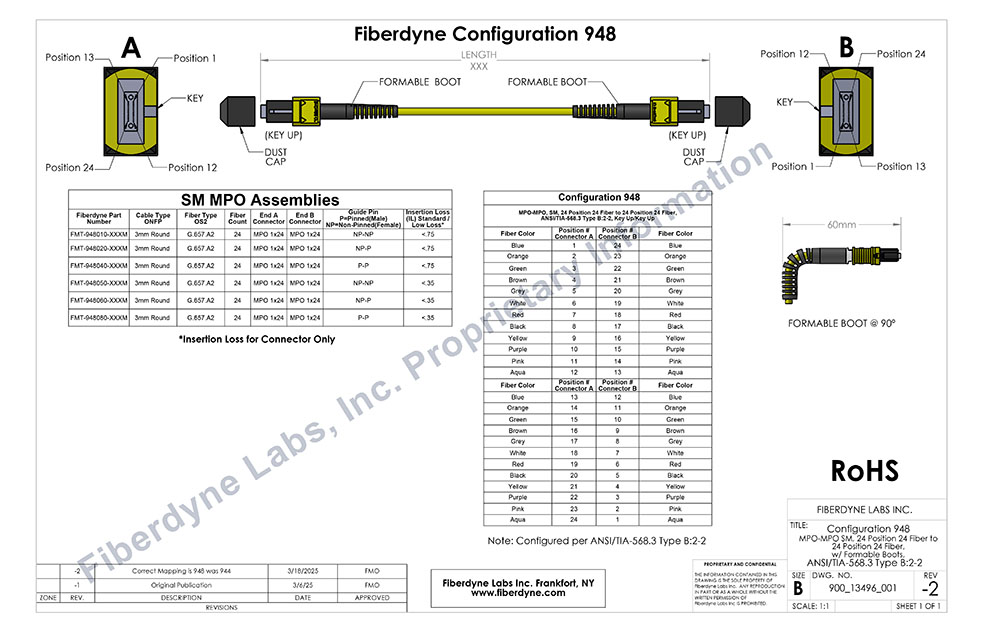

Note: Configurations illustrated below indicate an alignment pin option of No Pin to No Pin (NP-NP),
Pin to No Pin or Pin to Pin, see part number matrix in the drawing.
Prices are the same regardless of pinning. New York

OS2 3.0 Round Singlemode Plenum Cable Assemblies

Fiberdyne Part Number	Description	Buy
FMT-948010-XXXM	Configuration 948 MPO-MPO, 24 Position 24 Fiber to 24 Position 24 Fiber with Standard Boots, NP-NP <.75dB OS2 Plenum	Call to Order
FMT-948020-XXXM	Configuration 948 MPO-MPO, 24 Position 24 Fiber to 24 Position 24 Fiber with Standard Boots, NP-P <.75dB OS2 Plenum	Call to Order
FMT-948040-XXXM	Configuration 948 MPO-MPO, 24 Position 24 Fiber to 24 Position 24 Fiber with Standard Boots, P-P <.75dB OS2 Plenum	Call to Order
FMT-948050-XXXM	Configuration 948 MPO-MPO, 24 Position 24 Fiber to 24 Position 24 Fiber with Standard Boots, NP-NP <.35dB OS2 Plenum	Call to Order
FMT-948060-XXXM	Configuration 948 MPO-MPO, 24 Position 24 Fiber to 24 Position 24 Fiber with Standard Boots, NP-P <.35dB OS2 Plenum	Call to Order
FMT-948080-XXXM	Configuration 948 MPO-MPO, 24 Position 24 Fiber to 24 Position 24 Fiber with Standard Boots, P-P <.35dB OS2 Plenum	Call to Order
