Home Ultra Slim Mini-6 Category 6 Patch Cables





Ultra Slim Mini-6 patch cable versus standard Category 6 patch cable

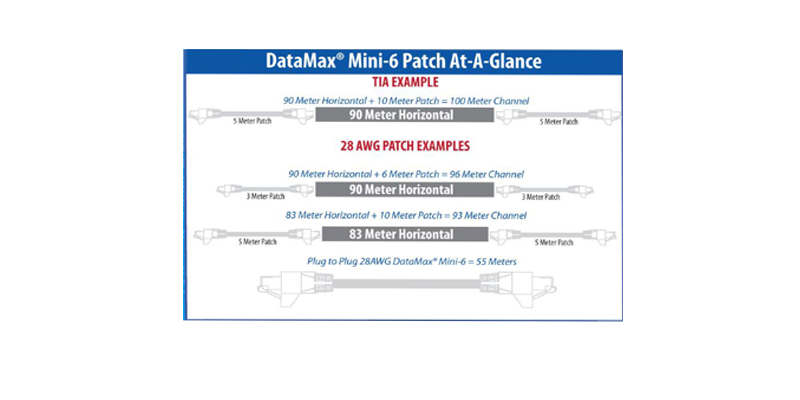

Fiberdyne Labs Ultra Slim Mini-6 patch cables utilize Quabbin DataMax® Mini-6 Patch 28 AWG cable and Panduit SP628-C 28 AWG modular connectors to ensure a high quality assembly in a smaller more flexible design. This assembly is designed for high density patching and top of rack applications in Category 6 systems. Assemblies meet Category 6 plug to plug electrical and transmission requirements up to 55 meters, while providing a more flexible design with smaller diameter and smaller cross sectional area to allow for better air flow within the rack.

Features:

  • Ultra Slim Design
    • 32% Size reduction versus standard Category 6
    • 48% smaller cross sectional area
  • 28 AWG Stranded Tinned Copper
  • Unshielded Twisted Pair (UTP) with PVC Jacket
  • Increased Flexibility
  • Increased Cable Density
  • Promotes Better Air Flow
  • Decreased Cable Weight versus standard Category 6
  • Available in 8 standard colors: Black, Red, Yellow, Green, Blue, Violet, Gray, & White
  • High Quality Panduit RJ45 Modular Plugs

Applications:

  • Top of Rack
  • Patching Solutions
  • Highest Density Installations
  • Temperature Sensitive Locations

Cable Ratings:

  • NEC (UL) Type CMR
  • CEC C(UL) Type CMR

Call your Fiberdyne Labs sales representative to inquire about our new smaller, increased flexibility Ultra Slim Mini-6 Category 6 patch cord assemblies.

Specifications:

PDF File

Ordering Information:

Part Number Description Buy
FBMM061xxxFK Category 6 Ultra Slim Mini-6 Stranded Riser Cable, Black,
Panduit Snagless RJ45-RJ45, xxx Feet
Call to Order
FBMM061xxxFR Category 6 Ultra Slim Mini-6 Stranded Riser Cable, Red,
Panduit Snagless RJ45-RJ45, xxx Feet
Call to Order
FBMM061xxxFY Category 6 Ultra Slim Mini-6 Stranded Riser Cable, Yellow,
Panduit Snagless RJ45-RJ45, xxx Feet
Call to Order
FBMM061xxxFG Category 6 Ultra Slim Mini-6 Stranded Riser Cable, Green,
Panduit Snagless RJ45-RJ45, xxx Feet
Call to Order
FBMM061xxxFB Category 6 Ultra Slim Mini-6 Stranded Riser Cable, Blue,
Panduit Snagless RJ45-RJ45, xxx Feet
Call to Order
FBMM061xxxFP Category 6 Ultra Slim Mini-6 Stranded Riser Cable, Violet,
Panduit Snagless RJ45-RJ45, xxx Feet
Call to Order
FBMM061xxxFA Category 6 Ultra Slim Mini-6 Stranded Riser Cable, Gray,
Panduit Snagless RJ45-RJ45, xxx Feet
Call to Order
FBMM061xxxFW Category 6 Ultra Slim Mini-6 Stranded Riser Cable, White,
Panduit Snagless RJ45-RJ45, xxx Feet
Call to Order

Note: *** Maximum length 180 Feet (55 Meters)
