Home Singlemode Fiber Optic Patch Cord Cable Assembly Specifications




Description:

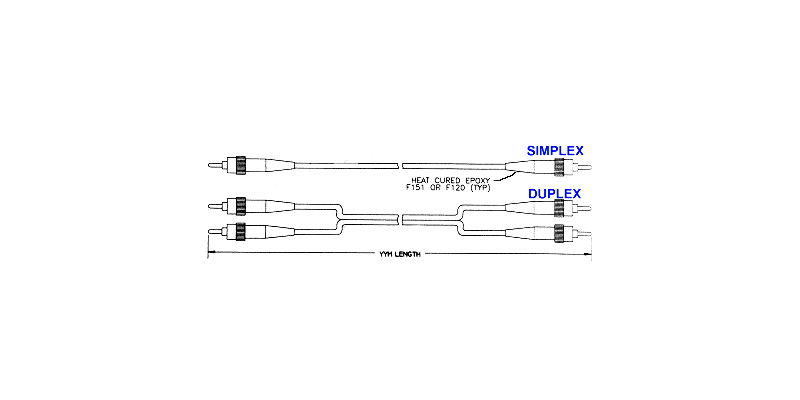

Fiberdyne Labs, Inc. offers a complete line of Fiber Optic Cable Assemblies. Below are Sample Drawings showing Fiberdyne Labs premium quality Fiber Optic Assemblies. Fiberdyne Labs brand is the product of choice for many of the Fortune 500 companies in the United States and Canada. Fiberdyne takes pride in each and every assembly produced.

  • Simplex and Duplex Assemblies
  • Any Connector - SC/UPC, SC/APC, ST, STII, FC/UPC, FC/APC, SMA, MTRJ, ESCON, FDDI, LC/UPC, LC/APC, MTP, etc.
  • Machine Polish - All Assemblies are machine polished
  • Oven Cured - All assemblies are oven cured
  • Drop Shipping - Drop shipping is available to any location specified
  • Assemblies are checked for optical clarity
  • Sharp Pricing - Our pricing is the best in the industry. As a manufacturer, we pass our savings directly to our customer. We are OEM for Corning and AT&T.

Singlemode Cable Assembly



Cable Data
Fiberdyne Cable 8.3/125 Tight Buffer
Corning Fiber Singlemode
  Simplex Duplex
Outside Dia. 2.9mm 2.9 X 5.8 mm
Cable Weight 7.8Kg/km 15.6Kg/km
Max. Tensile Load
  Short Term 500DN 1000DN
  Long Term 300DN 500DN
Min. Bend Radius
  Loaded 5.0cm 5.0cm
  Unloaded 3.0cm 3.0cm
Crush Rest. (N/cm) 750N/cm 750N/cm
Impact Resist. Cycles
  @1.6 N-m 1000 1000
Flex Resist. Cycles 7500 7500
Storage Temp. -40C TO +70C
Operating Temp. -20C TO +70C
Cable: Yellow Nonplenum Single Mode Premium Performance
Single Mode: (1300/1550 nm)
Max. Attenuation: (dB/km) 1.0/.75
Typ. Attenuation: (@ 23c) .5/.5
Min. Bandwidth: (MHz-km) 160/500

Connector Data

Parameter: Single Mode FC
Interconnection Compatibility: All Standard Conn. & Compatibles
Attentuation: <0.3db
Durability: <0.2dB Change - 500 Remating
Temp Range: -40C to +60C
Storage: -40C to +80C
Operating: -40C to +80C
Ferrule: Pre-Radiused Ceramic
Housing: Composite
Reflectance: <-30 dB for PC
<-40 dB for Super PC
<-55 dB for Ultra PC
<-65 dB for Angled PC
Tensile Strength: < or = 0.2 dB change, 20 lb. FOTP-6
Temperature Cycling: -40 to +75 ºC, 21 cycles, < 0.3 dB change
