Description:

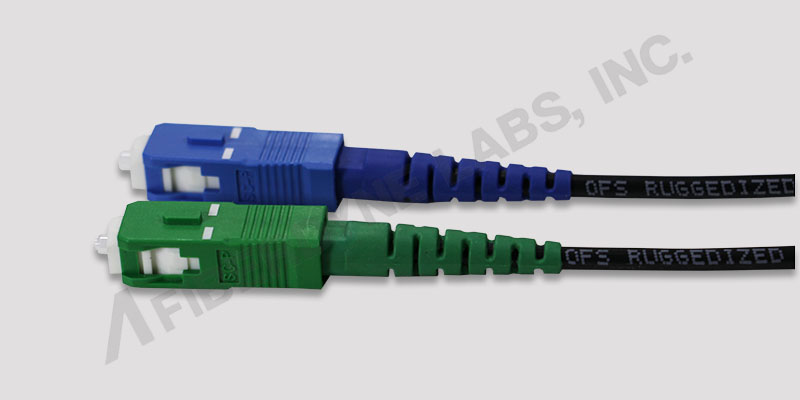

Fiberdyne Labs is proud to offer a new cable assembly featuring OFS EZ-Bend® 3.0 and 4.8 Ruggedized Cable. Available assembly options include Indoor/Outdoor Riser rated cable with white or black jackets in 3.0 or 4.8mm cable. Indoor Plenum rated cable is only available in 4.8mm white jacket. The cable assemblies can be used as single fiber drop cables or for MDU (Multi-dwelling unit) and in-home applications with aggressive routing environments. The cable assemblies can be routed around corners and stapled, similarly to copper wire installations, with negligible signal loss.



Features:
  • - 3.0 and 4.8mm diameter ruggedized cable
  • - G.657.B3 5mm bend radius backwards compatible with G652.D
  • - Available Riser or Plenum Fire Rating
  • - Reinforced solid jacket with dry water-blocked core

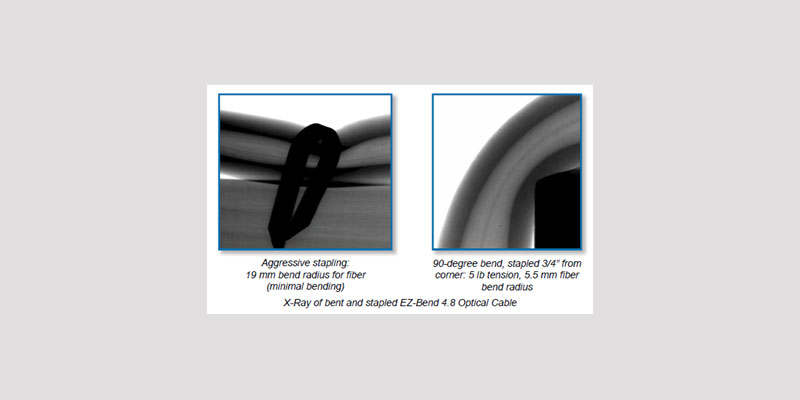

  • - Can be routed around corners and stapled for ease of installation

Specification Sheet
    3.0 & 4.8 Ruggedized Simplex Assembly
    EZ-Bend® 4.8 & 3.0 Ruggedized Cables Specification Sheet



Fiberdyne Labs 3.0 Ruggedized 1 Fiber Drop Cable Assemblies
Featuring OFS EZ-Bend® G.657.B3 Fiber
Fiberdyne Part Number Cable Type Jacket Color Fiber Count End A Connector End B Connector
FMT-58430K-XXXM 3.0 Indoor/Outdoor Riser Black 1 SC/UPC SC/UPC
FMT-58431K-XXXM 3.0 Indoor/Outdoor Riser Black 1 SC/APC SC/APC
FMT-58432K-XXXM 3.0 Indoor/Outdoor Riser Black 1 LC/UPC LC/UPC
FMT-58433K-XXXM 3.0 Indoor/Outdoor Riser Black 1 LC/APC LC/APC
FMT-58430W-XXXM 3.0 Indoor/Outdoor Riser White 1 SC/UPC SC/UPC
FMT-58431W-XXXM 3.0 Indoor/Outdoor Riser White 1 SC/APC SC/APC
FMT-58432W-XXXM 3.0 Indoor/Outdoor Riser White 1 LC/UPC LC/UPC
FMT-58433W-XXXM 3.0 Indoor/Outdoor Riser White 1 LC/APC LC/APC
FMT-58434W-XXXM 3.0 Indoor/Outdoor Riser White 1 SC/UPC SC/APC
FMT-58435W-XXXM 3.0 Indoor/Outdoor Riser White 1 SC/UPC LC/UPC
FMT-58436W-XXXM 3.0 Indoor/Outdoor Riser White 1 SC/UPC LC/APC
FMT-58437W-XXXM 3.0 Indoor/Outdoor Riser White 1 SC/APC LC/UPC
FMT-58438W-XXXM 3.0 Indoor/Outdoor Riser White 1 SC/APC LC/APC
FMT-58439W-XXXM 3.0 Indoor/Outdoor Riser White 1 LC/UPC LC/APC



Fiberdyne Labs 4.8 Ruggedized 1 Fiber Drop Cable Assemblies
Featuring OFS EZ-Bend® G.657.B3 Fiber
Fiberdyne Part Number Cable Type Jacket Color Fiber Count End A Connector End B Connector
FMT-58440K-XXXM 4.8 Indoor/Outdoor Riser Black 1 SC/UPC SC/UPC
FMT-58441K-XXXM 4.8 Indoor/Outdoor Riser Black 1 SC/APC SC/APC
FMT-58440W-XXXM 4.8 Indoor/Outdoor Riser White 1 SC/UPC SC/UPC
FMT-58441W-XXXM 4.8 Indoor/Outdoor Riser White 1 SC/APC SC/APC
FMT-58450W-XXXM 4.8 Indoor Plenum White 1 SC/UPC SC/UPC
FMT-58451W-XXXM 4.8 Indoor Plenum White 1 SC/APC SC/APC
FMT-58454W-XXXM 4.8 Indoor Plenum White 1 SC/APC SC/UPC



Note:
- For "XXXM" enter length in Meters. Example 10 Meters = 010M
- EZ-Bend is a registered trademark of OFS Fitel, LLC
- Alternate jacket colors available by special request

Fiberdyne Labs manufactures Singlemode & Multimode Assemblies in a variety of configurations.
Call your Fiberdyne Sales Representative at 800-894-9694 or email us at
