Introduction:
    To describe Fiberdyne's rack-mount chassis, which hosts the rack-card version of Fiberdyne's media converters and repeaters.

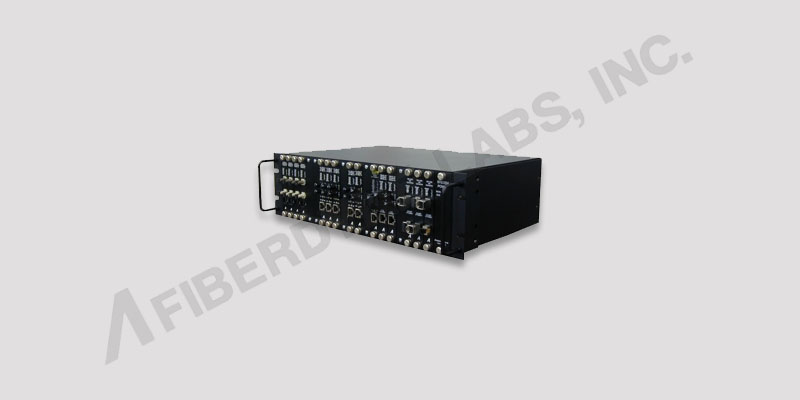

Front of Chassis Shown with various rackcards and blanks
Note: Rack Cards Sold Separately


Rear of Chassis Shown with Redundent Power Supply Configuration


Conceptual Usage:
    Each rack-mount chassis can hold 20 Ethernet rack-cards. These cards are media converters or repeaters, and they are hot-swappable. They support 10Base (Ethernet), 100Base (Fast Ethernet) and 1000Base (Gigabit Ethernet) data links. Typically, a chassis is used at a central location, where fiber links are aggregated. Then, standalone converters/repeaters are used at remote locations.

    The chassis can host one or two power-supply modules. When two modules are loaded, they serve as redundant, power supplies. Each module can support the power requirements of an entire, fully-loaded chassis. The power-supply modules are field-replaceable and hot-swappable.

Features:
  • Hosts multiple types of Ethernet Converter/Repeater rack-cards
    • Media Converters: 10Base, 100Base, 1000Base
    • Repeaters: 10Base-FL, 1000Base-T/SX/LX/ZX/CWDM
    • Hot-swappable Converter/repeater rack-cards
  • Redundant, hot-swappable, Power-Supply modules available.
  • Status LED's on "System Power" monitor panel: Power Main and Power Aux
  • Color - Black
Standard Configurations:
  • Rack-mountable - 19-inch or 23-inch rack frames; reversible mount tabs
  • System Power monitor module
  • Two (2) power-module slots on rear of chassis
  • 20 converter/repeater rack-card slots on front of chassis.
Options:
  • Redundant, power-supply modules: 120/240 VAC and 48 VDC
  • Media Converter and Repeater rack-cards (sold separately, but the chassis can be shipped - fully loaded)
    To Converter Cards
Specifications:


Part Number Build Matrix:

FRXXX XXXXX
12345 678910
FR  0 0
FR = Fiberdyne Labs "Rack-mount electronics

Digit #DescriptionOptions *
3rd & 4th PackageEC = Ethernet Chassis
PS = Power Supply module for chassis **
5th & 6thReserved00 = reserved
7th & 8thMain Power Supply00 = none
12 = 120/240 VAC, 50/60 Hz
48 = 48VDC
9th & 10thAuxiliary Power Supply***00 = none
12 = 120/240 VAC, 50/60 Hz
48 = VDC
Notes:
* Add "Special Instructions" for custom configurations. For example: if the chassis will be shipped with 10 FTX-250R-SL rack-cards, then list: "Special Instructions: install 10 FTX-250R-SL rack-cards before shipping."

** If ordering a separate, redundant, power-supply module (e.g. spare), then specify the type in digits 7 & 8 and "00" in digits 9 & 10 (e.g. 120/240-VAC, power-supply module has part number, FRPS001200").

*** If this option is selected, then this is the redundant power supply.



Chassis
Part Number Description Buy
FREC001200 19" Rack Mountable, 20 Slot Chassis
with one (1) 120/240 VAC 50/60Hz Power Supply		 Call to Order
FREC001212 19" Rack Mountable, 20 Slot Chassis
with two (2) 120/240 VAC 50/60Hz Power Supply		 Call to Order
FREC004800 19" Rack Mountable, 20 Slot Chassis
with one (1) 48 VDC Power Supply		 Call to Order
FREC004848 19" Rack Mountable, 20 Slot Chassis
with one (2) 48 VDC Power Supply		 Call to Order



Chassis Power Supply Modules
Part Number Description Buy
FRPS001200 120/240 VAC Redundant Power Supply Module Call to Order
FRPS004800 48 VDC Redundant Power Supply Module Call to Order
