Optical Time Domain Reflectometers (OTDR)
Introduction:

Hand-Held OTDR M200 Handheld OTDR
The Noyes M200 from AFL Telecommunications offers unmatched OTDR capabilities in a handheld package weighing less than 1 kg (2 lb). Multimode, Single-mode, and ‘Quad’ wavelength models are offered. With short dead zone and intermediate range specifications, the M200 is ideal for Tier 2 testing of premises (building and campus) networks or certification and troubleshooting of FTTX PON networks. And its bright, transflective display makes it suitable for both indoor and outdoor operation. The M200 is based on a new hardware/software platform that supports automatic and manual setup, precision event analysis, dual-wavelength testing, rich file naming and folder setup, 6 hour battery life, internal and removable media data storage, and USB connectivity. Test ports are equipped with tool-free adapters, which can be changed in seconds. A custom-designed polycarbonate case and shock-absorbing boot make it our most rugged OTDR ever. Results are saved as industry standard .SOR files, which can be viewed, printed, and analyzed on a PC using Trace600 software (download link on right). Unit firmware, user settings, and test results are saved in non-volatile memory. Thus the M200 may be stored with battery removed for an extended period of time and still be up and running in seconds when needed.

New Feature
USB Host Port offers a new convenient way to transfer data from the M200 to a PC. By using a standard USB Flash Drive to transfer traces, the user no longer needs a USB Cable, ActiveSync or a Compact Flash reader. Using the Tools in the M200 File Manager, one or more folders or files can be copied to a USB Flash Drive for transfer to a PC. Thousands of files will fit on a 64 MB or larger USB Flash Drive.

Features:

  • Handheld, 0.9 kg (2 lb)
  • 850/1300/1310/1550 nm
  • 1.5 m (typ.) event dead zone
  • 22 dB (MM), 26 dB (SM) dynamic range
  • Integrated VFL (650 nm)
  • Tool-free, switchable adapters (ST/SC/FC)
  • Bellcore (GR-196) .SOR file format
  • Tool-free LiIon battery (6 hour life)
  • Transflective (indoor/outdoor) touchscreen display
  • USB Host and Function Ports
  • USB Flash Drive

Applications:

  • Tier 2 testing of premises networks
  • FTTX PON certification and trouble-shooting
  • Fast fault location
  • Splice verification
  • Network documentation
Specifications:

Part Number Description Price
M200-00-0900PR 850/1300nm multimode and 1310/1550nm single-mode
OTDR (1) ST, (2) SC, and (1) FC *		 Call for Order
M200-11-0900PR 1310/1550nm single-mode OTDR SC and FC * Call for Order
M200-12-0900PR 850/1300nm multimode OTDR ST and SC * Call for Order

* LC test port adapters are available (order separately).



Notes:
    1. All models include a rugged, soft-sided carry case with shoulder strap, 110/220 VAC power adapter with country-specific power cord, and user guide.
    2. M200 Standard OTDR supported languages: English, French, German, Italian, Portuguese and Spanish. For Chinese/Taiwanese, Japanese, or Korean models part numbers, please contact Fiberdyne Labs, Inc.

Noyes Soft Case




Hard Case with Standard Accessories
Hard Case with Standard Accessories

Hard Case with Optional Accessories
Hard Case with Optional Accessories

M200 Handheld OTDR in a Hard Case

The Noyes M200 OTDR is also available in a tough injection molded ABS carrying case. The rugged transit case has a full length hinge, padlock loops, secure snap latches and an O-ring seal to protect the contents from dust and water. In addition to the OTDR, the custom case has room for cleaning products, launch and receive rings, documentation and more. Order the Hard Case alone or with one of the M200 configurations. Add test accessories such as fiber rings and cleaning kits to be ready to clean and test fiber optic networks.


M200 Hard Case Ordering Information

The M200 Hard Case option should be specified when ordering the M200 OTDR. For the M200 OTDR in a Hard Case, refer to the table below.

Model Number Description Price
1400-01-0075PZ Hard Case for M200Call for Order
M200-00-0903PR 850/1300nm Multimode and 1310/1550nm
Single-mode M200 OTDR in Hard Case		Call for Order
M200-11-0904PR 1310/1550nm
Single-mode M200 OTDR in Hard Case		Call for Order
M200-12-0902PR 850/1300nm multimode M200 OTDR in Hard CaseCall for Order

NOTE: Fiber rings and cleaning supplies are not included with the M200 in the Hard Case option, they must be purchased separately. To order fiber rings or cleaning supplies with your M200, refer to the ‘Accessories Ordering Information’ table below.



OTDR Fiber Rings
Introduction:

Fiber Ring OTDR's require Launch and Receive Test Cables to measure the end-to-loss of Optical Fiber Links. A Launch Cable, which connects the OTDR to the link under test, reveals the insertion loss and reflectance of the near-end connection. A receive cable, which is connected to the far-end of the link, reveals the insertion loss and reflectance of the far-end connection.
Specifications:

Part Number Description Price
FR1-M5-150-x1-x2 Standard, 1 Fiber, Multimode, 50 µm Fiber
Length 150 m (492 ft)		 Call for Order
FR1-L5-150-x1-x2 Standard, 1 fiber, Laser Optimized,
50 mm multimode, 150m (492 ft)		 Call for Order
FR1-M6-150-x1-x2 Standard, 1 Fiber, Multimode, 62.5 µm Fiber
Length 150 m (492 ft)		 Call for Order
FR1-SM-150-y1-y2 Standard, 1 Fiber, Singlemode Fiber
Length 150 m (492 ft)		 Call for Order
Note:
    x1, x2-connectors for multimode cables, specify type (e.g. ST, SC)
    y1, y2-connectors for singlemode cables, specify type (e.g. ST, SC, FC)
    Other connector types, fiber types, and fiber lengths will gladly be quoted upon request.



OTDR Pulse Suppression Box (High Usage)
Introduction:
    This box is designed to facilitate fast replacement of pigtail fiber optic cable assemblies which quickly wear out from high usage.

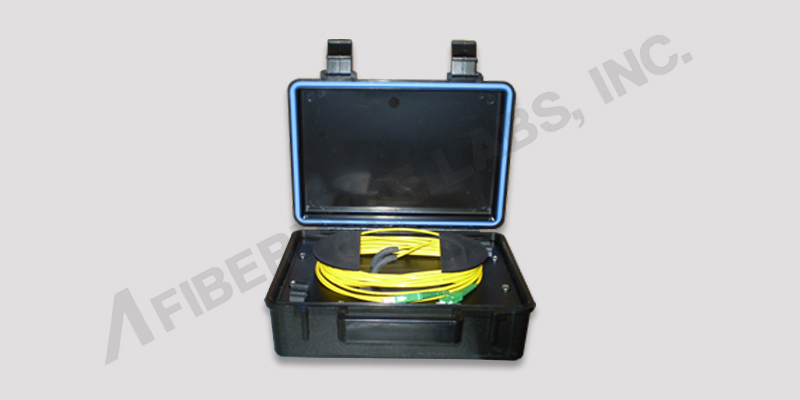

High Usage OTDR Pulse Suppression Box.
Features:
  • Single-mode & Multimode
    Configurations
  • Rugged Design
  • All Connector Types are available
  • Manufacturer Direct Savings
  • Custom Applications Available.
    Pre-known Splice Points etc.

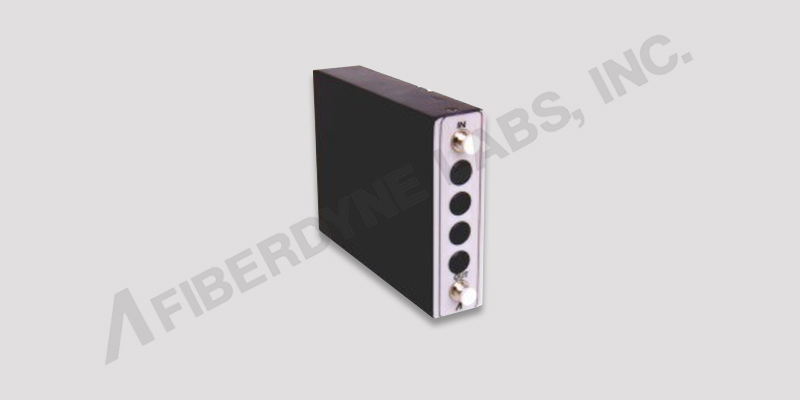

Miniature OTDR Pulse Suppression Module
Eliminator Box
Configurations:
    Fiberdyne Labs, Inc. OTDR Pulse Suppression Box/Test Box is available in many custom configurations. Single-mode and Multimode versions are available. Whenever possible Corning Fiber is utilized. All connector variations are available ST, SC, FC, etc.
Specifications:

Part Number Description Price
900-000-100 Singlemode Pulse Suppression Box,
ST Connectors, 500 Meters		 Call for Order
900-000-101 Singlemode Pulse Suppression Box,
FC Connectors, 500 Meters		 Call for Order
900-000-102 Singlemode Pulse Suppression Box,
SC Connectors, 500 Meters		 Call for Order
900-000-103 Singlemode Pulse Suppression Box,
FC/APC Connectors, 500 Meters		 Call for Order
900-000-104 Singlemode Pulse Suppression Box,
SC/APC Connectors, 500 Meters		 Call for Order
900-000-200 Singlemode Pulse Suppression Box,
ST Connectors, 1100 Meters		 Call for Order
900-000-201 Singlemode Pulse Suppression Box,
FC Connectors, 1100 Meters		 Call for Order
900-000-202 Singlemode Pulse Suppression Box,
SC Connectors, 1100 Meters		 Call for Order
900-000-203 Singlemode Pulse Suppression Box,
FC/APC Connectors, 1100 Meters		 Call for Order
900-000-204 Singlemode Pulse Suppression Box,
SC/APC Connectors, 1100 Meters		 Call for Order

Part Number Description Price
900-000-300 Multimode Pulse Suppression Box,
ST Connectors, 500 Meters		 Call for Order
900-000-301 Multimode Pulse Suppression Box,
FC Connectors, 500 Meters		 Call for Order
900-000-302 Multimode Pulse Suppression Box,
SC Connectors, 500 Meters		 Call for Order
