Fiberdyne Labs Optical Power Meter
|
|
| |
Introduction:

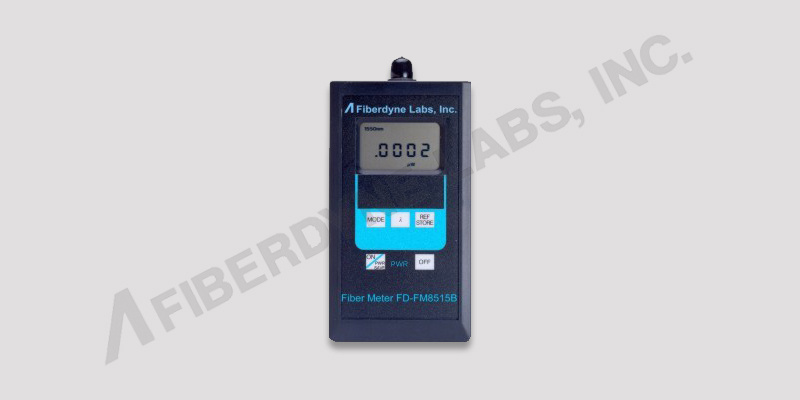

Model FD-FM8515B Shown
Click on image to enlarge;
Double Click to return to normal size

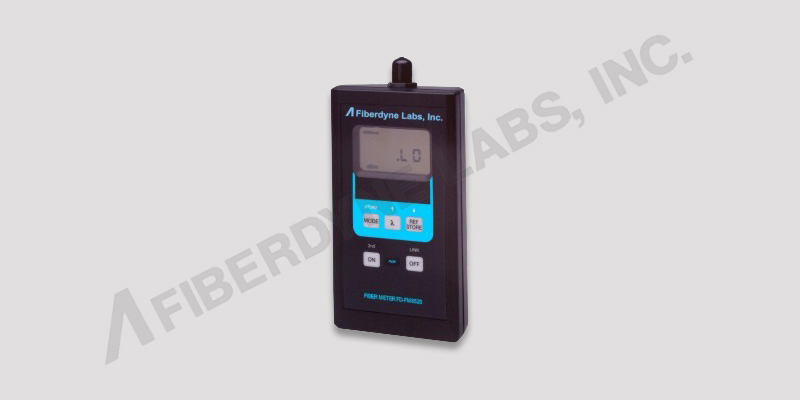

Model FD-FM8520 Shown
|
The FD-FM Series Meters are hand held, compact, lightweight, and easy to use battery powered optical power meters. Together with any of Fiberdyne's Light Sources, this team makes a perfect combination for accurately testing multimode and singlemode optical fiber systems.
Models FD-FM8515-B/C, and FD-FM8520 offer measurements in dBm, dBr, and micro watts (milli-watts for FD-FM8515-C).
Models FD-FM8515-B and FD-FM8520 measure optical power from +5 dBm to -70 dBm with calibrated wavelengths of 850, 1310, and 1550nm making these units ideal for general singlemode and multimode fiber optic testing.
Model FD-FM8515-C (High Power) measures optical power from +23 dBm to -50 dBm with calibrated wavelengths of 850, 1310, and 1550nm making these units ideal for measurements on CATV systems, optical amplifiers, and other high power devices.
Features:
- Multiple Wavelengths
- Low Power Consumption
- Time and cost savings: one meter - multiple wavelengths.
- Single Key Operation
- Wide dynamic range
- Multimode and singlemode applications.
- Two Way Power - AA Alkaline batteries, or optional rechargeable NiCad batteries
- Two AA Alkaline batteries provide 100 hours of use.
Specifications:
To Adapter Caps
|
Fiberdyne Labs Model FD-FM8515B Optical Power Meter
850nm, 1310nm, 1550nm, InGaAs, Reference Store, dBm, dBr, µW
| Item No. |
Charger |
Price |
| FD-FM30851511 |
No |
Call for Quote |
| FD-FM30851512 |
Yes |
Call for Quote |
|
Note:
An adapter cap is required. They are listed and purchased separately.
Fiberdyne Labs Model FD-FM8515C Optical High Power Fiber Meter
850nm, 1310nm, 1550nm, InGaAs, Reference Store, dBm, dBr, mW
| Item No. |
Charger |
Price |
| FD-FM30851514 |
No |
Call for Quote |
| FD-FM30851513 |
Yes |
Call for Quote |
|
Note:
An adapter cap is required. They are listed and purchased separately.
Fiberdyne Labs Model FD-FM8520 Optical Power Meter
Computer/Printer Interface, Reference Store, dBm, dBr, µW
850nm, 1310nm, 1550nm, InGaAs
| Item No. |
Charger |
Price |
| FD-FM30852001 |
No |
Call for Quote |
| FD-FM30852002 |
Yes |
Call for Quote |
|
Note:
An adapter cap is required. They are listed and purchased separately.
Optical Power Meters |
|
| |
| Introduction:
| The Noyes OPM 4 offers automatic wavelength identification and switching when used with Wave ID light sources. The OPM 4 stores optical references for each calibrated wavelength. An easy to read Dual Wavelength LCD display with Backlight shows measured Power
[dBm or µW] or insertion loss [dB], calibrated wavelengths, tone signal [Hz], wavelength ID, and the battery charge status.
Features:
- Rugged, handheld, lightweight
- Multimode or singlemode applications
- Premises (Ge), Telco(InGaAs), and Broadband (+26dBm) models
- Wave ID - automatic wavelength identification and switching
- Passive Optical Networks (PON) testing
- Dual Wavelength testing
- 270 Hz, 330 Hz, 1kHz, Tone detection
- Large LCD with Backlight
- Power measurements in dBm or µW; insertion loss in dB
- Reference power level storage
- AA Alkaline, optional rechargeable NiMH battery pack or AC adapter
- Battery Gauge
- N.I.S.T traceable
Specifications:
To Adapter Caps
|
| Part Number |
Description |
Detector Type |
Power Range |
Price |
| OPM 4-2D |
Optical Power Meter
(850/1300/1310/1550 nm) |
Germanium |
+6 to -60 |
Call for Quote |
| OPM 4-3D |
Optical Power Meter
(850/1300/1310/1550/1625 nm) |
InGaAs |
+6 to -70 |
Call for Quote |
| OPM 4-4D |
Optical Power Meter
(850/980/1310/1490/1550/1625 nm) |
Filtered InGaAs |
+26 to -50 |
Call for Quote |
|
|
Optical Power Meters |
|
| |
| Introduction:
| The Noyes OPM 5 offers automatic wavelength identification and switching when used with Wave ID light sources. The OPM 5 stores optical references for each calibrated wavelength. An easy to read Dual Wavelength LCD display with Backlight shows measured power [dBm or µW] or insertion loss [dB], calibrated wavelengths, tone signal [Hz}, wavelength ID, and the battery charge status. Up to 500 records per wavelength of power or insertion loss measurements may be stored in internal non-volatile memory. Using the supplied Windows® compatible software and USB connection, test records may be transferred to a PC for storage, display, and analysis.
Features:
- Rugged, handheld, lightweight
- Multimode or singlemode applications
- Premises (Ge), Telco(InGaAs), and Broadband (+26dBm) models
- Wave ID - automatic wavelength identification and switching
- Passive Optical Networks (PON) testing
- Dual Wavelength testing
- 270 Hz, 330 Hz, 1 kHz, Tone detection
- Large LCD with Backlight
- Power measurements in dBm or µW; insertion loss in dB
- Reference power level storage
- Up to 500 test records per wavelength storage and download
- USB port for download of stored records
- Free Windows® compatible software to view, print, and archive test records
- AA Alkaline, optional rechargeable NiMH battery pack or AC adapter
- Battery Gauge
- N.I.S.T traceable
Specifications:
|
| Part Number |
Description |
Detector Type |
Power Range |
Price |
| OPM 5-2D |
Optical Power Meter
(850/1300/1310/1550 nm) |
Germanium |
+6 to -60 |
Call for Quote |
| OPM 5-3D |
Optical Power Meter
(850/1300/1310/1550/1625 nm) |
InGaAs |
+6 to -70 |
Call for Quote |
| OPM 5-4D |
Optical Power Meter
(850/980/1310/1490/1550/1625 nm) |
Filtered InGaAs |
+26 to -50 |
Call for Quote |
|
|
