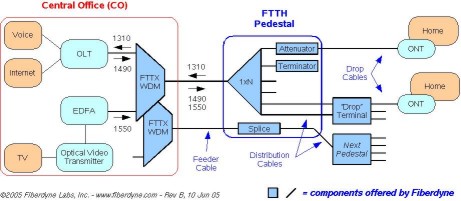

Purpose: To describe Fiberdyne's "FTTH" distribution enclosure and its configuration options. Conceptual Usage: The FTTH Pedestal is a general-purpose, outdoor enclosure. It is the main node for voice, data and video distribution, in a passive optical network (PON). The pedestal is the network interface -- at the neighborhood. Options, for its internal components, were designed, according to the ITU G.983.1 standard and according to various, proposed and fielded FTTx requirements. FTTH-Scheme Figure 1: Fiber-to-the-Home Block Diagram, from CO to Pedestal to Home. The pedestal houses two fiber-management functions. One is the "relay" function. Signals are passed to the other pedestals (i.e. feeder cables are spliced to distribution cables). The other function is "distribution." Downstream signals (typically, 1490 nm and 1550 nm) are split, then sent on to the ONTs (Optical Network Terminals). Upstream signals (typically, 1310 nm) are combined, then sent to the CO (Central Office). Additionally, the pedestal houses other components such as splices, attenuators, terminators and miscellaneous fiber-management. Splitters and splices are mounted in the splice trays. A connector panel mount can host 24 fiber connections. Attenuators can be added as necessary. These connector panels can hold terminators for unused fibers. Then, excess fiber can be spooled, and cables can be clamped to the main mount panel, which is removable. Features: Nonmetallic (i.e. high-performance, thermo-plastic) enclosure Complies with Telcordia GR-13 CORE and RUS PE-91 specifications Partially buried, two-piece base for easy installation with cables One-piece, domed cover with flush-mounted latch mechanism Removable, mount panel for splicing and routing in protective shelters (e.g.equipment van) Fiber-optic and cable management devices (e.g. splice trays, clamps, connector panels) attach to mount panel; mix and arrangement is adjustable Options: Self-supporting base with or without integral spade; also includes positions for mounting stakes Environmental splice enclosure for cable relay to other nodes; removable for splicing in protective shelter (e.g. equipment van) Optical Splitters (1x8, 1x16, 1x32) based on planer technology Trays for planer splitters and splices Connector Panel Retainer holds two LGX/Lucent-compatible panels Connector Panels for FC, SC, ST, LC, MT-RJ and MTP Six connectors per panel: FC, SC, ST, MT-RJ, MTP 12 connectors per panel: SC, ST, LC Environmental Splice Enclosure Inside View Environmental Splice Enclosure Note: underground cable vaults sold separately. Aerial/Burial Enclosure Standard Configuration: One-piece dome lid with integral lock mechanism Mount Panel divided into two functions: Relay and Distribution Relay: splice trunk cables to other trunk cables (i.e. relay to other nodes) Distribution: split signals to drop cables (i.e. distribute to homes) Relay side: Includes "Environmental Splice Enclosure" and shelf Shelf has retainer with two thumb-screws for tool-less maintenance Enclosure slides from shelf for protected splicing (i.e. van or tent) Distribution side: Splice Trays (4 each); one tray contains the optical splitter Fiber-management hubs (4 each) Connector Panel Retainer (1 each) Connector Panels (2 each; must specify connector type and quantity) Cable clamps (2 each) Self-supporting base without spade; mounting stakes can be used

Click on image to enlarge
Double click to return to normal size.

Pedestal Enclosure Specifications: Pedestal Enclosure Pedestal Enclosure Pedestal Enclosure - Isometric Drawing - Colorized Pedestal Enclosure - Isometric Drawing - Black & White

Part Number Build Matrix:

Example: "Standard Pedestal" - Fiberdyne FTTH Pedestal - 12-inch, self-supporting base, no spade - Environmental Splice Enclosure with 2 splice trays - 4 Distribution-side splice trays; one with 1x32 optical splitter - 2 connector panels, each with six (6) SC/UPC adapters - 4 fiber-management hubs and 2 cable clamps Part # FFP-120-2432-4223

Wavelength Division Multiplexer Modules

Introduction: Fiberdyne Labs Wavelength Division Multiplexer (WDM) allows the user to effectively double the capacity of the currently installed fiber by allowing two different wavelengths or signals to travel over the same fiber at the same time. These signals do not combine with each other, the degree to which they maintain their individuality is the isolation specification. Fiberdyne Labs manufactures a complete family of WDM Modules. Select from 19" Rack Model, Wallmount Model, or Corning, Lucent, and ADC plug compatible models, including Corning Reduced Splitter Tray model.
