Introduction to Fiber Optic Cable Assemblies



Fiberdyne Labs, Inc. produces premium quality Fiber Assemblies using your choice of 12 Custom Colors. (See Below) We are the manufacturer of choice for many of the Fortune 500 companies in the United States and internationally known companies. Fiberdyne Labs, Inc. takes pride in every assembly shipped.

• On Time Delivery/Fast Delivery - everything possible will be done to ensure that you receive your order when it is needed.
• Quality Material - Components meet current industry standards.
• Any Cable Configuration - We build both Singlemode and Multimode assemblies; simplex, duplex, multiple fiber, fan-out, indoor, outdoor, etc.
  Plenum cable available upon request.
• 12 colors of Multimode and Singlemode are available.

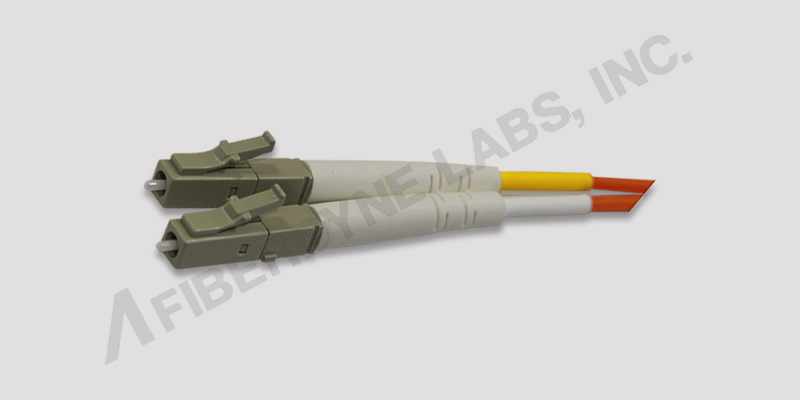

• Any Connector- SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, SMA, MTRJ, ST, STII, MTP etc.
•     - Short Boots are available
•     - Clips are available on Duplex Assemblies
•     - Uni-boot are available on Duplex Only.
New York
• Machine Polish - All assemblies are machined polished.
• Oven Cured - all assemblies are heat cured.
• Custom Configurations - Fiberdyne will build to your drawing/specifications and we can help create custom cables.
• - Custom Labeling is available.
• Drop Shipping - drop shipping is available to any location specified.
• Sharp Pricing - our pricing is the best in the industry. As a manufacturer, we pass our savings directly on to our customer.
• ISO 9001 Certified

New York
