Network Analyzer Taps Fiber Optic Interface Modules

19 Inch Rackmount Module
19 Inch Rackmount Module


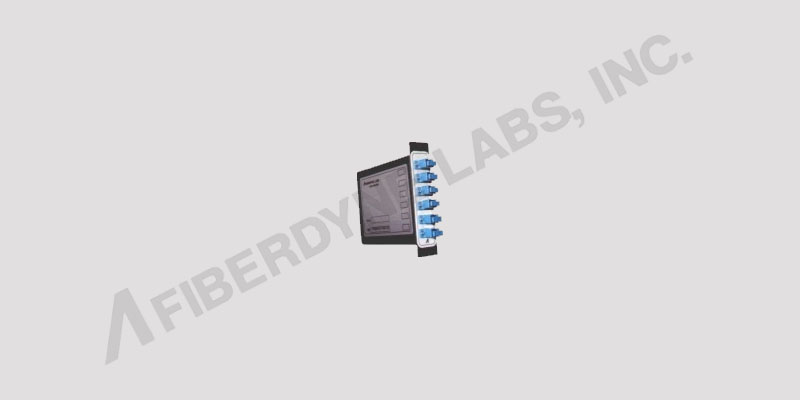

Duplex Channel Module
Duplex Channel Module

Purpose:
    To provide a simple parallel tap "interface" between your fiber-optic network and your Network Analyzer (or Monitoring) equipment.
Conceptual Usage:
    After connecting the Network Tap to the network, one can easily attach or remove the analyzer/monitor equipment without disturbing the network. This product is ideal for use with analyzers such as "sniffers." Enjoy the cost benefits of sharing one network analyzer on multiple network links. This product is a passive optical device and does not require electrical power. It can be used on a variety of optical networks including: ATM, Gigabit and Fast Ethernet. Network Taps are added to existing network links. These modules are described by their channel count. One channel monitors one, full-duplex link. Depending on the module type, multiple channels may be built into a single module. Each channel uses two fiber-optic splitters and six optical connectors. These six connectors include two (2) network inputs, two (2) network outputs, and two (2) tap outlets. The customer must specify the desired tap split ratio, which can be almost any required percentage of the network power. Commonly specified values are 90/10, 80/20 and 50/50.

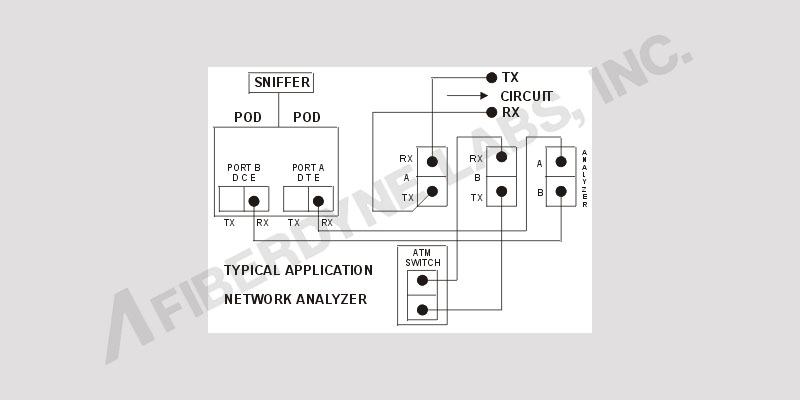

Typical Application (Network Analyzer)
Features:
  • Attach/Remove Network Monitoring Equipment without Network Disruption
  • Monitors Transmit and Receive Fibers
  • Available for Single-mode or Multimode Networks
  • Passive Optical Device - No Electrical Power Required
  • Multiple Packaging Configurations Available
  • Available with Most Popular Fiber-Optic Connectors
  • Specific Virtually Any Tap (Split Ratio)Percentage (specify percent, of power, sampled from the network link - 1% to 50%)
Standard Configurations:
  • Split Ratios (typical): 50/50, 60/40, 70/30, 80/20, or 90/10
  • Standard telecom wavelengths (nm): 850, 1310, or 1550
  • Full-duplex monitoring
Options:
  • Single-mode (9/125) or Multimode (62.5/125 or 50/125) versions
  • Gigabit Multimode - for VCSEL (e.g. 1000Base-SX sources
  • Alternate Spit Ratios available
  • Simplex monitoring (i.e. 1/2 channel)
  • Connector Types: SC, ST, FC, LC, MT-RJ
  • Packaging: LGX, Seicor, ADC, 19/23-inch Rack-mount
Specifications:

Ordering Information:
FAN-XX X-XXX
 456  789
FAN = Fiberdyne Labs, Inc. Network Taps
(Network Analyzer Taps Fiber Optic Interface Modules)

4th. DigitCenter Wavelength
0 =1550 nmSingle-mode Single-window
1 =1310 nmSingle-mode Single-window
2 =1310/1550Single-mode Dual-window
3 =850Multimode, Laser (e.g. gigabit)
4 =1310Reserved
5 =850/1310Multimode, Dual-window
5th. Digit Number of Channels

Note:
1 Channel = 3 Duplex
Connections

1/2 Channel = 3 Simplex
Connections

 0 = 1/2 Channel (3 Simplex Connectors)
1 = 1 Channel (3 Duplex Connectors)
2 = 2 Channels (6 Duplex Connectors)
3 = 3 Channels (9 Duplex Connectors)
4 = 4 Channels (12 Duplex Connectors)
5 = 5 Channels (15 Duplex Connectors)
6 = 6 Channels (18 Duplex Connectors)
6th. Digit Package Type 0 = Reduced Tray
      (Monitors 1 Duplex; pigtails only)
1 = 19" Rack Mount x 1.75"
      (Monitors up to 6 Duplex Channels)
2 = Not Used( Reserved for Future Configuration)
3 = Lucent/Fiberdyne Compatible Enclosure
      (Monitors 1 Duplex)
4 = Siecor Compatible Enclosure (Monitors 1 or 2 Duplex Channels)
5 = Heavy Duty Simplex Enclosure (Monitors 1/2 Channel, i.e. Simplex link)
7th. Digit Fiber Type 0 = 50/125 Multimode (Using Corning SX+ fiber
1 = 62.5/125 Multimode
2 = 8.3/125 Single-mode
8th. Digit Connector Type
0 =Network Connections ST,
Analyzer Connection ST.
1 =Network Connections FC,
Analyzer Connection ST.
2 =Network Connections Duplex SC,
Analyzer Connection Duplex SC.
3 =Network Connections ST,
Analyzer Connection Duplex SC.
4 =Network Connections FC,
Analyzer Connection Duplex SC.
5 =Network Connections ST Pigtail,
Analyzer Connection ST Pigtail.
6 =Network Connections FC Pigtail,
Analyzer Connection FC Pigtail.
7 =Network Connections SC Pigtails,
Analyzer Connections SC Pigtails.
8 =Network Connections SC/APC Pigtails,
Analyzer Connections SC Pigtails.
9 =Network Connections FC,
Analyzer Connections FC.
L =Network Connections Duplex LC
Analyzer Connections Duplex LC.
9th. Digit Split Ratio Max. Insertion Loss
0 = 50/50
      4.4/4.4 Multimode
      4.0/4.0 Singlemode
1 = 70/30
      3.0/6.9 Multimode
      2.3/6.2 Singlemode
2 = 80/20
      2.4/8.8 Multimode
      1.7/8.0 Singlemode
3 = 90/10
      1.9/11.9 Multimode
      1.2/11.4 Singlemode
4 = 60/40
      3.6/5.6 Multimode
      2.9/5.0 Singlemode
Example: FAN-511-123
Network Analyzer Interface Module, Multimode, 850/1310 nm, 1 Duplex channel, 19 inch Rack-Mount, 62.5/125 MMF, SC connectors 90/10 optical split ratio.

Fiberdyne Labs, Inc. Network Taps Pricing
(Network Analyzer Taps Fiber Optic Interface Module)

Part Number Description Price
FAN-x0x-x x x Network Analyzer Taps Fiber Optic Interface Modules,
1/2 Channel (3 Simplex Connections)		 Call For Quote
FAN-x1x-x x x Network Analyzer Taps Fiber Optic Interface Modules,
1 Channel (3 Duplex Connections)		 Call For Quote
FAN-x2x-x x x Network Analyzer Taps Fiber Optic Interface Modules,
2 Channels (6 Duplex Connections)		 Call For Quote
FAN-x3x-x x x Network Analyzer Taps Fiber Optic Interface Modules,
3 Channels (9 Duplex Connections)		 Call For Quote
FAN-x4x-x x x Network Analyzer Taps Fiber Optic Interface Modules,
4 Channels (12 Duplex Connections)		 Call For Quote
FAN-x5x-x x x Network Analyzer Taps Fiber Optic Interface Modules,
5 Channels (15 Duplex Connections)		 Call For Quote
FAN--x6x-x x x Network Analyzer Taps Fiber Optic Interface Modules,
6 Channels (18 Duplex Connections) Fully Loaded		 Call For Quote
