Home Single-mode & Multimode Hybrid Adapters




Purpose:
    To mate dissimilar fiber-optic interfaces (e.g. cable assemblies)
Device Description:
    Hybrid Adapters provide an interconnect between two different fiber-optic connector types. Basically, these adapters are very short cable assemblies, however the resulting device integrates all of the components. Hybrid adapters are typically male-to-female, although female-to-female adapters are possible by adding a mating sleeve.

    (Note: mating sleeves are female-to-female interfaces, which interconnect two male connectors; mating sleeves are fiber-less.)

Specifications:

Male SC to Female FC
Male SC/APC
to
Female FC
Adapter		 Male ST to Female FC
Male ST
to
Female FC
Adapter
Male SC to Female ST
Male SC
to
Female ST
Adapter		 Male ST to Female SC
Male ST
to
Female SC
Adapter

Singlemode
Female SC
to
Female LC
Adapter
Multimode Duplex
Female ST
to
Female SC
Adapter

Singlemode Duplex
Female SC
to
Female ST
Adapter
Singlemode Simplex

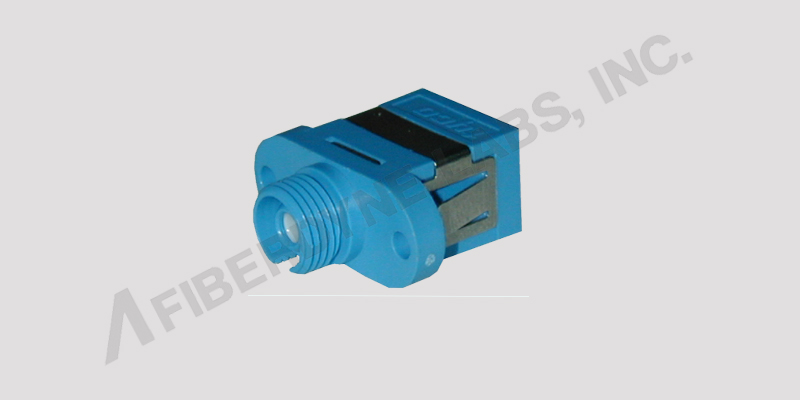

Female FC
to
Female SC
Adapter

Singlemode Simplex
SC/APC Male
to
SC/UPC Female
Adapter
Singlemode Simplex
SC/UPC Male
to
SC/APC Female
Adapter

Typical Insertion Loss Values Between 0.3dB & 0.5dB

Singlemode Simplex Male/Female Hybrid Adapters
Part Number Connector Type Buy
FL-SCMFCF-SM Male SC to Female FC Call to Order
FL-STMFCF-SM Male ST to Female FC Call to Order
FL-SCMSTF-SM Male SC to Female ST Call to Order
FL-STMSCF-SM Male ST to Female SC Call to Order
FL-SCMSAF-SM Male SC/UPC to Female SC/APC Call to Order
FL-SAMSCF-SM Male SC/APC to Female SC/UPC Call to Order

Multimode Simplex Male/Female Hybrid Adapters
Part Number Connector Type Buy
FL-SCMFCF-MM Male SC to Female FC Call to Order
FL-STMFCF-MM Male ST to Female FC Call to Order
FL-SCMSTF-MM Male SC to Female ST Call to Order
FL-STMSCF-MM Male ST to Female SC Call to Order

Singlemode Simplex Female/Female Hybrid Adapters
Part Number Connector Type Buy
FL-STFSCF-SM Female ST to Female SC Call to Order
FL-FCFSCF-SM Female FC to Female SC Call to Order
FL-SCFLCF-ZB Female SC to Female LC Call to Order

Multimode Simplex Female/Female Hybrid Adapters
Part Number Connector Type Buy
FL-STFSCF-MM Female ST to Female SC Call to Order
FL-FCFSCF-MM Female FC to Female SC Call to Order

Multimode Duplex Female/Female Hybrid Adapters
Part Number Connector Type Buy
FL-STFSCFD-MM Female ST to Female SC Call to Order
FL-STFESF-MM Female ST to Female Escon Call to Order

Singlemode Duplex Female/Female Hybrid Adapters
Part Number Connector Type Buy
FL-STFSCFD-SM Female ST to Female SC Call to Order
