1610 OTDR Bandpass WDM Filter

• Description:

FBF-1610 OTDR Bandpass WDM Filter provides an option to separate the OTDR bandwidth from existing traffic. The FBF-1610 is available as a standalone filter, multiple filters can be installed into custom modules, or it can be incorporated into DWDM or CWDM Mux modules.



• Features:

- High Isolation
- Low Insertion Loss
- RoHS Compliant
- Telcordia GR-1209 and GR-1221 Compliant



• Applications:

- OTDR Testing
- Local Area Networks
- FTTH Networks



• Specifications:

Technical Data Sheet



Parameters Specification Pass Channel Wavelength Range (nm) 1610 - 1650 Reflect Channel Wavelength Range (nm) 1260 - 1605 Insertion Loss Pass Channel (dB) ≤ 0.6 Insertion Loss Reflect Channel (dB) ≤ 0.4 Isolation Pass Channel (dB) ≥ 30 Isolation Reflect Channel (dB) ≥ 15 PDL Pass Channel (dB) ≤ 0.1 PDL Reflect Channel (dB) ≤ 0.1 Directivity (dB) ≥ 50 Return Loss (dB) ≥ 45 Dimensions (mm) Ø 5.5 x 38 Connector Type See Ordering Grid Fiber Length (m) ≥ 1.0 Fiber Type SMF-28e Operating Temperature (°C) -5 to +75 Storage Temperature (°C) -40 to +85

New York



• Ordering Information:

FBF - 1610 - X X X X F = Fiberdyne       Package Fiber Type Fiber Length Connector B = Bandpass       1 = Steel Tube 1 = 250µm 0 = 0.5m 0 = None F = Filter       H = Heavy Duty 9 = 900µm 1 = 1.0m 1 = FC/UPC           2 = 2mm Y = Custom 6 = SC/UPC           3 = 3mm   7 = FC/UPC               A = FC/APC               B = SC/APC               L = LC/UPC               N = LC/APC               Y = Custom

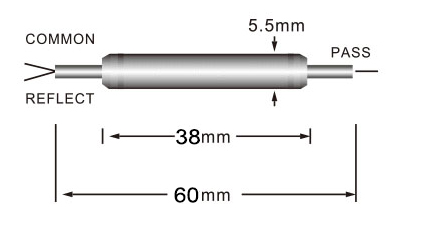

• Package Dimensions:
